  3. Hikrobot 8K7 XoF(2 SFP+) linescan camera，true-color MV-CL083-91F2C
test

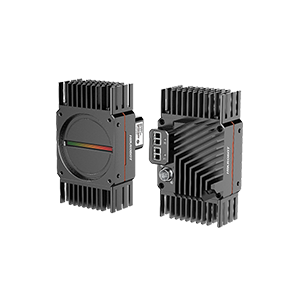

Hikrobot 8K7 XoF(2 SFP+) linescan camera，true-color MV-CL083-91F2C

https://annolution.com/web/image/product.template/8345/image_1920?unique=c6b8cce
  • Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
  • Provides 20G fiber port to transmit data with max. line rate of 66.6 kHz.
  • Supports RGB true color, multiple exposure and acquisition methods.
  • Adopts bi-directional configurable I/O hardware design.
  • Compact design and flexible installation.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CL083-91F2C
    CMOS Color Line Scan Camera CL Line Scan Camera Off/ Once/ Continuous exposure mode, and supports trigger-width exposure 7 μm × 7 μm 2LC fiber connector M72 *0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter MV-CL083-91F2C 8K7 XoF(2 SFP+) linescan camera，true-color 8192 × 3


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 8192 × 3
    Schnittstelle zur Datenübertragung 2LC fiber connector
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal reverse image output
    Model Number MV-CL083-91F2C
    Pixel Size 7 μm × 7 μm
    Mono/Color Color
    Lens Mount M72 *0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter
    Exposure Mode Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
    Certification CE, RoHS, KC
    Pixel Format Mono 8/12, RGB 8, BGR 8
    Digital I/O 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
    Power Supply 12 VDC to 24 VDC
    Power Consumption 14.0 W

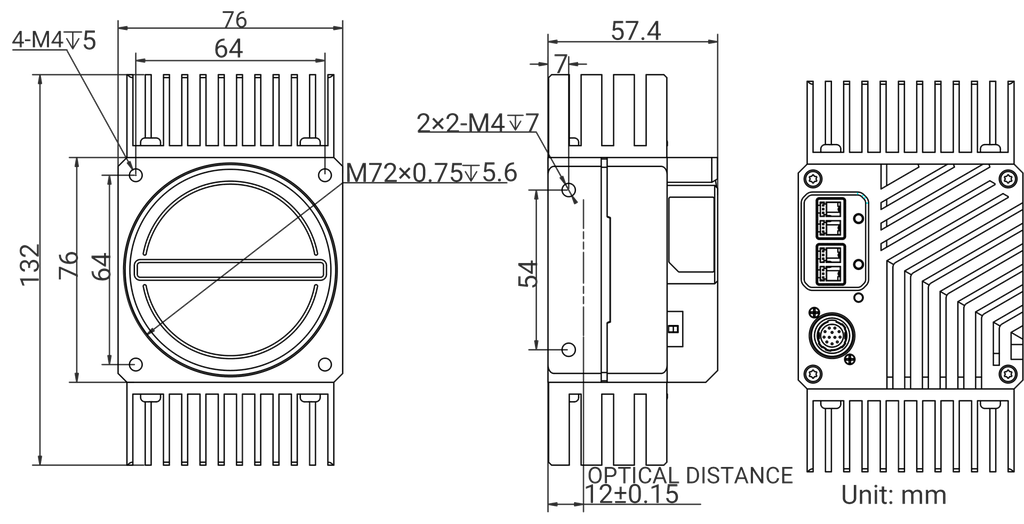

    Dimension 132 mm × 76 mm ×
    Weight 600 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 80 °C
    Humidity 5% to 90% RH, non-condensing
    Client Software MVS
    Operating System 32/64-bit Windows XP/7/10
