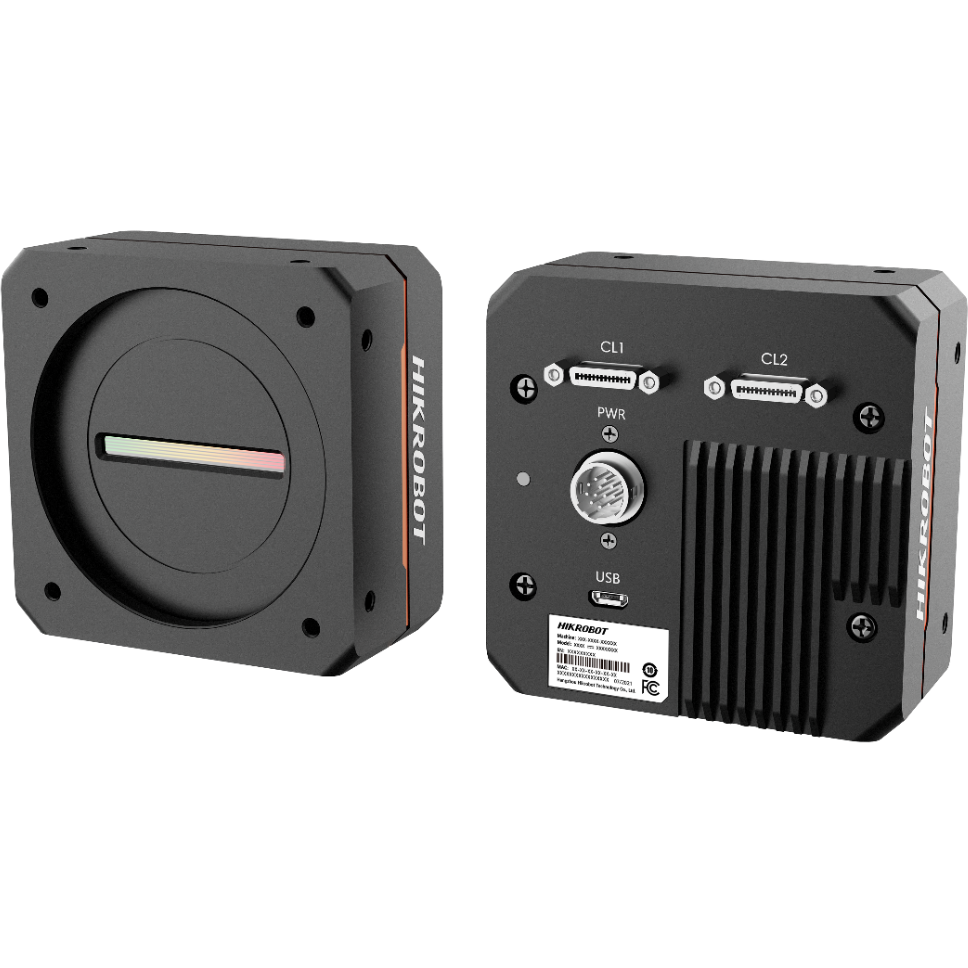

Hikrobot 8K Camera Link linescan Camera,5μm，Mono MV-CL084-91CM
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Supports TDI function to select different image modes.
- Supports exposure time and gain adjustment, PRNUC correction, LUT, Gamma correction, etc.
- Adopts compact design and supports flexible installation.
- Compatible with Camera Link Protocol and GenlCam Standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 8192 × 4 |
| Schnittstelle zur Datenübertragung | Camera Link (SDR connector); USB interface for updating firmware |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Model Number | MV-CL084-91CM |
| Pixel Size | 5 μm |
| Mono/Color | Mono |
| Lens Mount | M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter |
| Exposure Mode | Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure |
| Certification | CE, FCC, RoHS2.0, KC |
| Pixel Format | Mono 8/10/12 |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power Supply | 12 VDC to 24 VDC |
| Power Consumption | 9.7 W |
| Dimension | 84 mm × 84 mm × |
| Weight | 476 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 80 °C |
| Humidity | 5% to 90% RH, non-condensing |
| Client Software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating System | 32/64-bit Windows 7/10 |
