  3. Hikrobot 16k Linescan Cameras.Camera Link,Mono,2-TDI,3.5μm MV-CL162-91CM
test

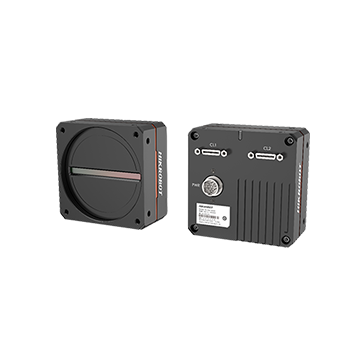

Hikrobot 16k Linescan Cameras.Camera Link,Mono,2-TDI,3.5μm MV-CL162-91CM

https://annolution.com/web/image/product.template/8348/image_1920?unique=dafeaeb
  • Adopts multiple ISP technologies and supports manual adjustment for Gamma correction, FFC correction, LUT, black level, etc.
  • Supports multiple exposure, image acquisition modes, and TDI function.
  • Supports bi-directional I/O wiring for flexible input/output settings.
  • Compact design and flexible installation.
  • Compatible with Camera Link V2.0 Protocol, GenlCam Standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CL162-91CM
    CMOS Mono Line Scan Camera CL Line Scan Camera Camera Link (SDR connector); USB interface for updating firmware M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure MV-CL162-91CM 16k Linescan Cameras.Camera Link,Mono,2-TDI,3.5μm 3.5 μm × 3.5 μm 16384 × 2


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 16384 × 2
    Schnittstelle zur Datenübertragung Camera Link (SDR connector); USB interface for updating firmware
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal reverse image output
    Model Number MV-CL162-91CM
    Pixel Size 3.5 μm × 3.5 μm
    Mono/Color Mono
    Lens Mount M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter
    Exposure Mode Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
    Certification CE, RoHS2.0, KC
    Pixel Format Mono 8/10/12
    Digital I/O 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
    Power Supply 12 VDC to 24 VDC
    Power Consumption 9.8 W
    Dimension 76 mm × 76 mm ×
    Weight 320 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 80 °C
    Humidity 5% to 90% RH, non-condensing
    Client Software MVS and frame grabber software meeting with Camera Link Protocol
    Operating System 32/64-bit Windows 7/10
