  3. Hikrobot 16k 5μm，XoF（2 SFP+) linescan camera，RGB/2TDI MV-CL166-91F2C
test

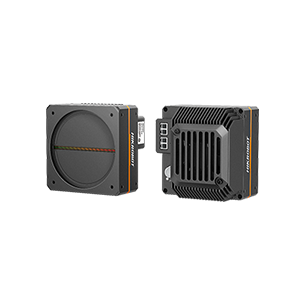

Hikrobot 16k 5μm，XoF（2 SFP+) linescan camera，RGB/2TDI MV-CL166-91F2C

https://annolution.com/web/image/product.template/8350/image_1920?unique=6224869
  • Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, noise reduction, etc.
  • Supports RGB true color, multiple exposure and acquisition methods.
  • Supports image mode of 1-line, 2-TDI, 3-TDI, and 4-TDI.
  • Supports transmission protocol of XoFLink with max. line rate of 47.3 kHz.
  • Adopts bi-directional configurable I/O hardware design.
  • Compact design and flexible installation.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CL166-91F2C
    CMOS Color 5 μm × 5 μm Line Scan Camera CL Line Scan Camera Off/ Once/ Continuous exposure mode, and supports trigger-width exposure 2LC fiber connector MV-CL166-91F2C 16k 5μm，XoF（2 SFP+) linescan camera，RGB/2TDI 16384 × 12 M90 *1, flange focal length 12 mm, applicable to F-mount via lens adapter


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 16384 × 12
    Schnittstelle zur Datenübertragung 2LC fiber connector
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal reverse image output
    Model Number MV-CL166-91F2C
    Pixel Size 5 μm × 5 μm
    Mono/Color Color
    Lens Mount M90 *1, flange focal length 12 mm, applicable to F-mount via lens adapter
    Exposure Mode Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
    Certification CE, RoHS, KC
    Pixel Format RGB 8, BGR 8
    Digital I/O 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
    Power Supply 24 VDC
    Power Consumption 22.5 W
    Dimension 99 mm × 99 mm ×
    Weight 923 g
    Ingress Protection IP40
    Storage Temperature –30 °C to 80 °C
    Humidity 5% RH to 90% RH (no condensation)
    Client Software MVS
    Operating System 32/64-bit Windows XP/7/10/11
    Stichwörter
    Stichwörter
    CMOS Color 5 μm × 5 μm Line Scan Camera CL Line Scan Camera Off/ Once/ Continuous exposure mode, and supports trigger-width exposure 2LC fiber connector MV-CL166-91F2C 16k 5μm，XoF（2 SFP+) linescan camera，RGB/2TDI 16384 × 12 M90 *1, flange focal length 12 mm, applicable to F-mount via lens adapter
