  3. Hikrobot 8.9MP Area Scan Camera, GigE, IMX267, Color, V4 MV-CH089-10GC
test

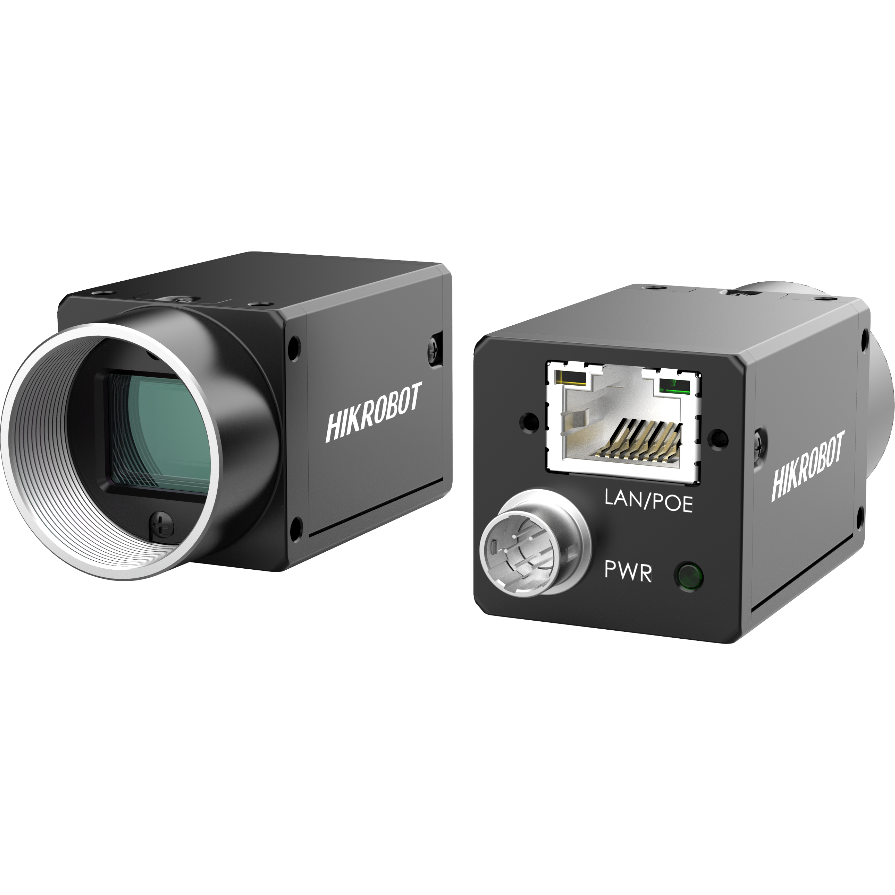

Hikrobot 8.9MP Area Scan Camera, GigE, IMX267, Color, V4 MV-CH089-10GC

https://annolution.com/web/image/product.template/8136/image_1920?unique=5954c5b
  • Supports LSC, Sequencer, passive transmission, etc.
  • Color camera supports Super Bayer, Super Palette, etc.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Supports hardware trigger, software trigger, free run, etc.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH089-10GC
    Area Scan Camera CMOS Color Gigabit Ethernet, compatible with Fast Ethernet Off/Once/Continuous exposure mode 3.45 μm × 3.45 μm 1" C-mount CH Area Scan Camera MV-CH089-10GC 8.9MP Area Scan Camera, GigE, IMX267, Color, V4 Sony® IMX267 4096 × 2160 13.7 fps @4096 × 2160 Bayer RG 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 4096 × 2160
    Schnittstelle zur Datenübertragung Gigabit Ethernet, compatible with Fast Ethernet
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH089-10GC
    Sensor Model Sony® IMX267
    Pixel Size 3.45 μm × 3.45 μm
    Sensor Size 1"
    Max Frame Rate 13.7 fps @4096 × 2160 Bayer RG 8
    Mono/Color Color
    Lens Mount C-mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12,
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 9 VDC to 24 VDC, supports PoE
    Power Consumption 2.4 W
    Dimension 29 mm × 29 mm ×
    Ingress Protection IP
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or third-party software meeting with GigE Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
