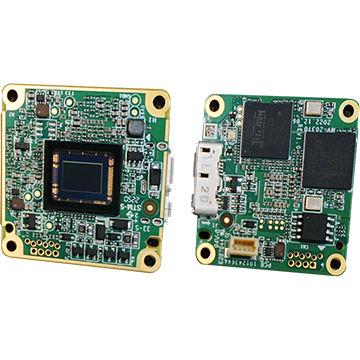

Hikrobot 6MP Board Level Camera, USB3, IMX178, Color, Bare Board, V4 MV-CB060-10UC-B
- Compact design for flexible installation.
- Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc.
- Supports HDR function with different exposure time and gain.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 3072 × 2048 |
| Schnittstelle zur Datenübertragung | USB3.0 |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CB060-10UC-B |
| Sensor Model | Sony® IMX178 |
| Pixel Size | 2.4 μm × 2.4 μm |
| Sensor Size | 1/1.8" |
| Max Frame Rate | 60.9 fps @3072 × 2048 Bayer RG 8 |
| Mono/Color | Color |
| Lens Mount | None |
| Exposure Mode | Off/ Once/ Continuous exposure mode, supports Global Reset and Trigger Rolling |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12, |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power Supply | USB3.0 power supply |
| Power Consumption | 1.8 W |
| Dimension | 32.5 mm × 32.5 mm × |
| Weight | 10 g |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
