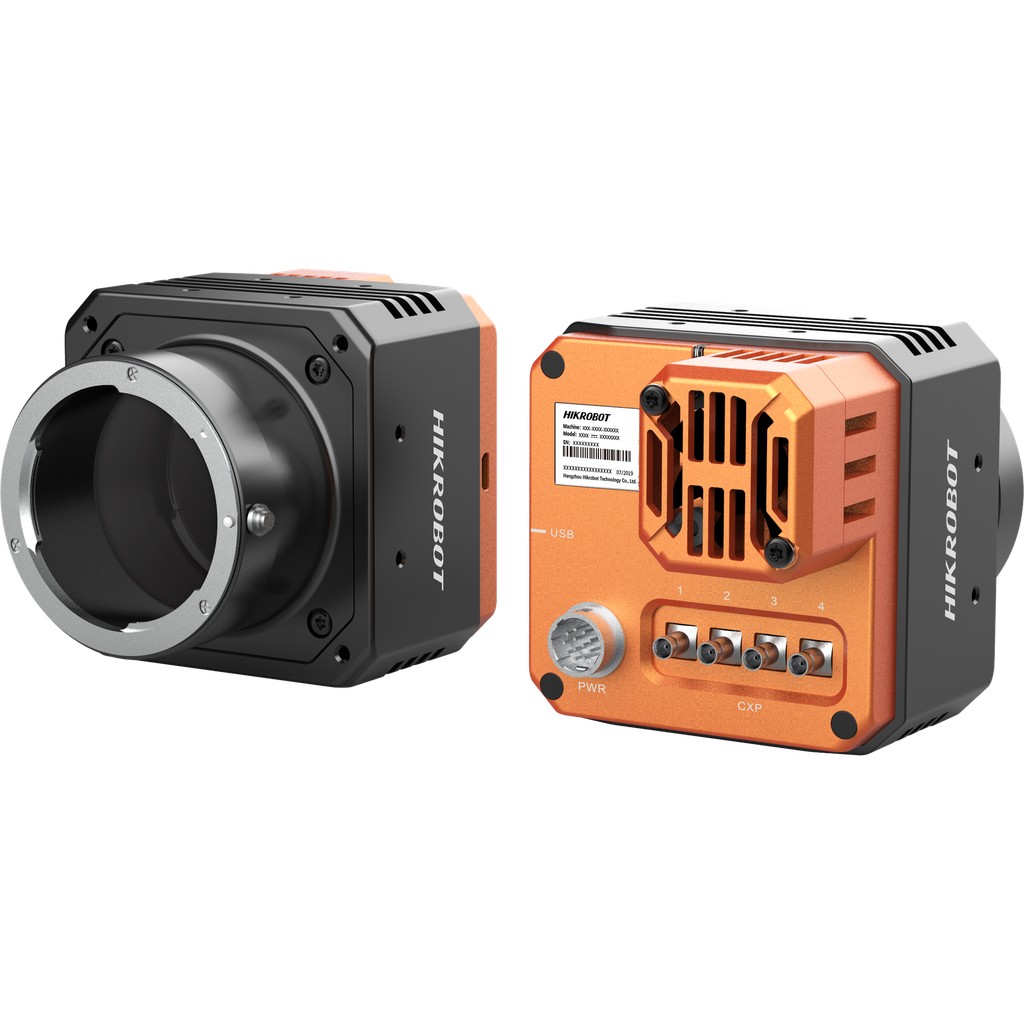

Hikrobot 65MP Area Scan Camera, CXP-6, GMAX3265, Color, M58-mount, with fan MV-CH650-90XC-M58S-NF

https://annolution.com/web/image/product.template/8235/image_1920?unique=4244710
  • Resolution of 9344 × 7000, and pixel size of 3.2 µm × 3.2 µm.
  • Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality image.
  • Adopts CXP-6 interface to transmit data.
  • Supports Off, Once, and Continuous exposure mode.
  • Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH650-90XC-M58S-NF
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode CH Area Scan Camera CoaXPress with DIN interface 3.2 μm × 3.2 μm Gpixel GMAX3265 29.9 mm × 22.4 mm 9344 × 7000 MV-CH650-90XC-M58S-NF 65MP Area Scan Camera, CXP-6, GMAX3265, Color, M58-mount, with fan 31.5 fps @9344 × 7000 M58-mount: optical back focal length: 11.48 mm (0.5")


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 9344 × 7000
    Schnittstelle zur Datenübertragung CoaXPress with DIN interface
    Sensortyp CMOS
    Binning Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH650-90XC-M58S-NF
    Sensor Model Gpixel GMAX3265
    Pixel Size 3.2 μm × 3.2 μm
    Sensor Size 29.9 mm × 22.4 mm
    Max Frame Rate 31.5 fps @9344 × 7000
    Mono/Color Color
    Lens Mount M58-mount: optical back focal length: 11.48 mm (0.5")
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Bayer BG 8/10/12
    Digital I/O 12-pin P10 connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power Supply 24 VDC
    Power Consumption 10.2 W

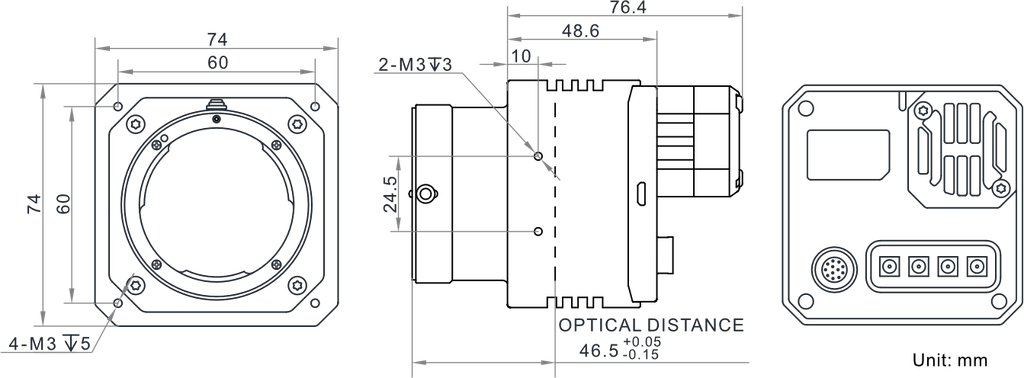

    Dimension M58-mount with fan: 74 mm ×
    Ingress Protection IP40
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software Frame grabber software meeting with CoaXPress Protocol
    Operating System 32/64-bit Windows 7/10 with 8 GB memory or above
