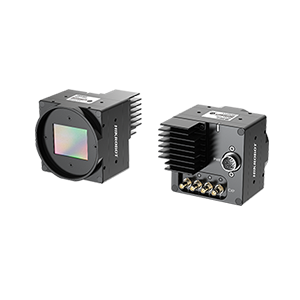

Hikrobot 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, V2, M58-mount MV-CH650-90YM-M58S-NN V2
- Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Adopts CXP-12 interface to transmit data.
- Compact design, low power consumption without cooling fan.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 9344 × 7000 |
| Schnittstelle zur Datenübertragung | CoaXPress with Micro-BNC interface |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH650-90YM-M58S-NN V2 |
| Sensor Model | Gpixel GMAX3265 |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 29.9 mm × 22.4 mm |
| Max Frame Rate | 71 fps @9344 × 7000 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | M58*0.75, flange focal length 11.48 mm (0.5") |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC, UL |
| Pixel Format | Mono 8/10/12 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power Consumption | 14.4 W |

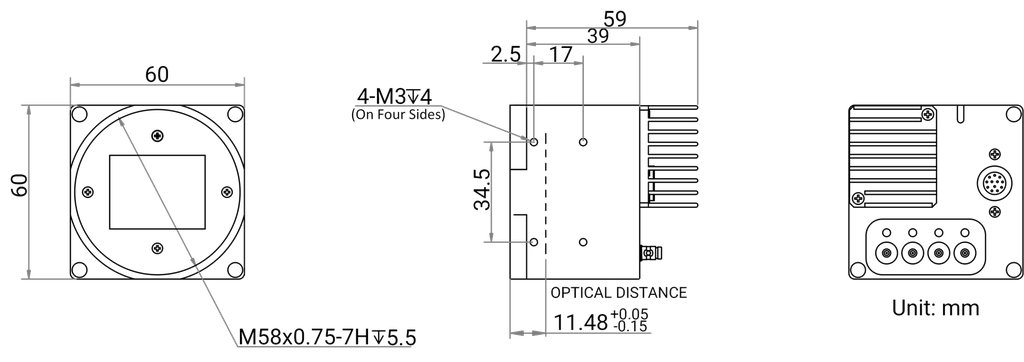

| Dimension | 60 mm × 60 mm × |
| Weight | 285 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
