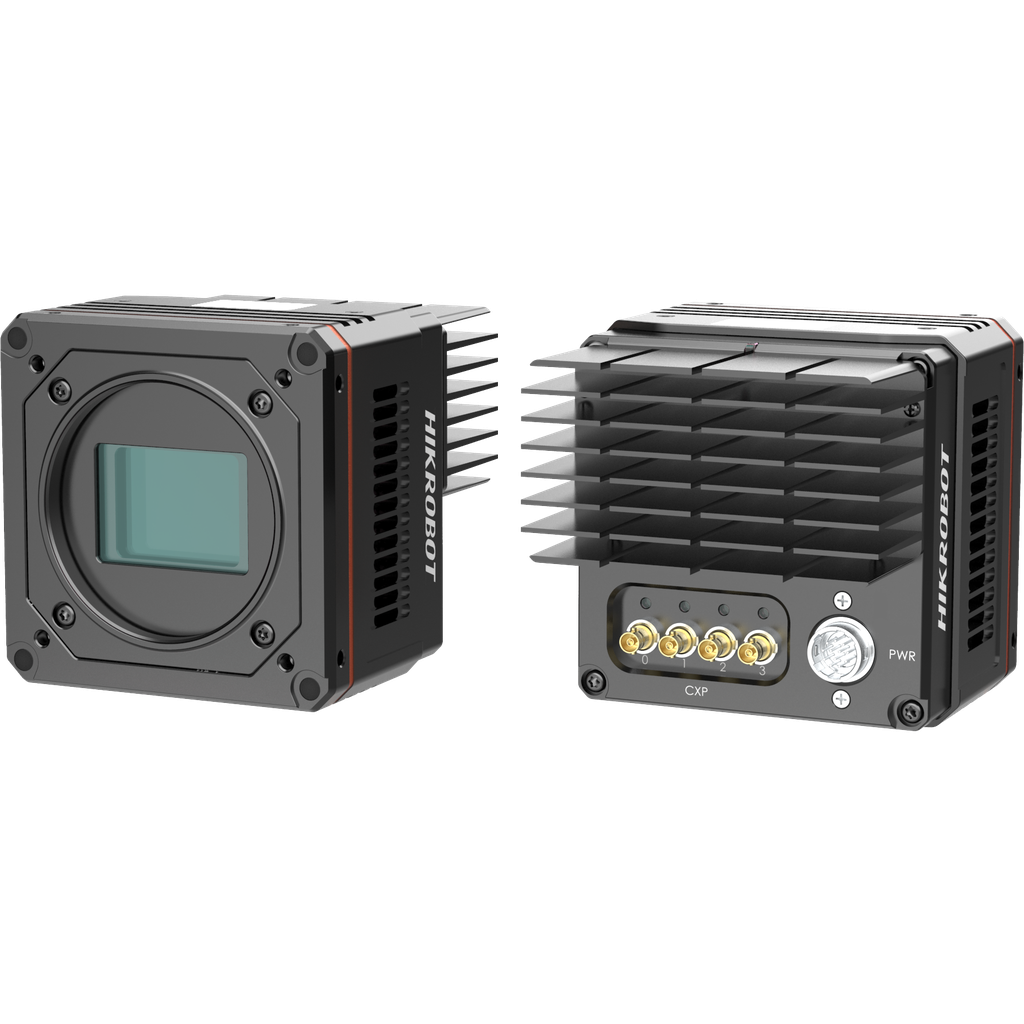

Hikrobot 65MP Area Scan Camera, CXP-12, GMAX3265, Color, M58-mount, without fan MV-CH650-90YC-M58S-NN
- Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Supports LSC sequencer polling function.
- Adopts CXP-12 interface to transmit data.
- Supports the flat field correction.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 9344 × 7000 |
| Schnittstelle zur Datenübertragung | CoaXPress with Micro-BNC interface |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH650-90YC-M58S-NN |
| Sensor Model | Gpixel GMAX3265 |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 29.9 mm × 22.4 mm |
| Max Frame Rate | 71 fps @9344 × 7000 |
| Mono/Color | Color |
| Lens Mount | M58*0.75, optical back focal length 11.48 mm (0.5") |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Bayer BG 8/10/12 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 24 VDC, CXP-1 and CXP-2 connectors support PoCXP |
| Power Consumption | 13.2 W |
| Dimension | 84 mm × 84 mm × |
| Weight | 650 g |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10 with 8 GB memory or above |
