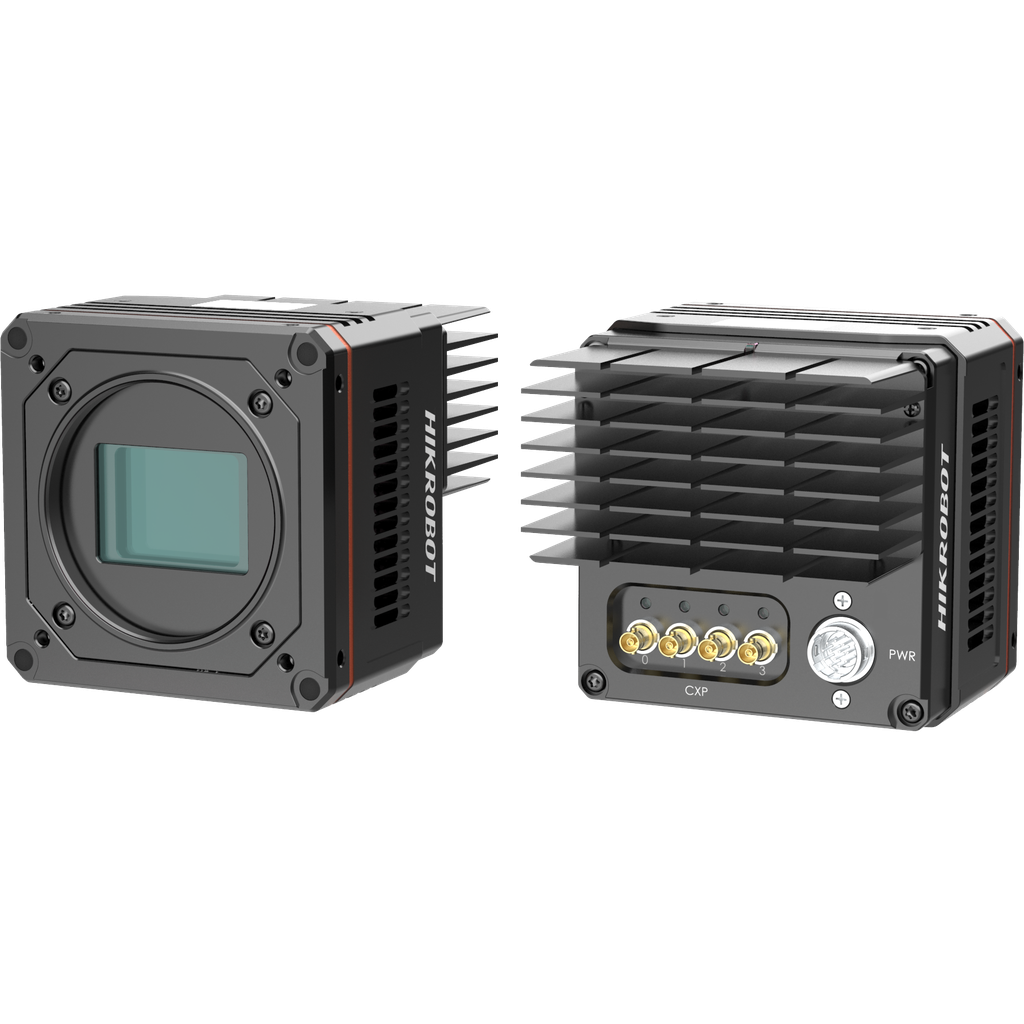

Hikrobot 65MP Area Scan Camera, CXP-12, GMAX3265, Color, F-mount, without fan MV-CH650-90YC-F-NN

https://annolution.com/web/image/product.template/8238/image_1920?unique=740d60f
  • Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
  • Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
  • Supports LSC sequencer polling function.
  • Adopts CXP-12 interface to transmit data.
  • Supports the flat field correction.
  • Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH650-90YC-F-NN
    Area Scan Camera CMOS Off/Once/Continuous exposure mode Mono CH Area Scan Camera 3.2 μm × 3.2 μm CoaXPress with Micro-BNC interface Gpixel GMAX3265 29.9 mm × 22.4 mm 9344 × 7000 MV-CH650-90YC-F-NN 65MP Area Scan Camera, CXP-12, GMAX3265, Color, F-mount, without fan 71 fps @9344 × 7000 M58*0.75, optical back focal length 11.48 mm (0.5")


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 9344 × 7000
    Schnittstelle zur Datenübertragung CoaXPress with Micro-BNC interface
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH650-90YC-F-NN
    Sensor Model Gpixel GMAX3265
    Pixel Size 3.2 μm × 3.2 μm
    Sensor Size 29.9 mm × 22.4 mm
    Max Frame Rate 71 fps @9344 × 7000
    Mono/Color Mono
    Lens Mount M58*0.75, optical back focal length 11.48 mm (0.5")
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12
    Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power Supply 24 VDC, CXP-1 and CXP-2 connectors support PoCXP
    Power Consumption 13.0 W
    Dimension 84 mm × 84 mm ×
    Weight 650 g
    Ingress Protection IP40
    Storage Temperature –30 °C to 80 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or frame grabber software meeting with CoaXPress Protocol
    Operating System 32/64-bit Windows 7/10 with 8 GB memory or above
