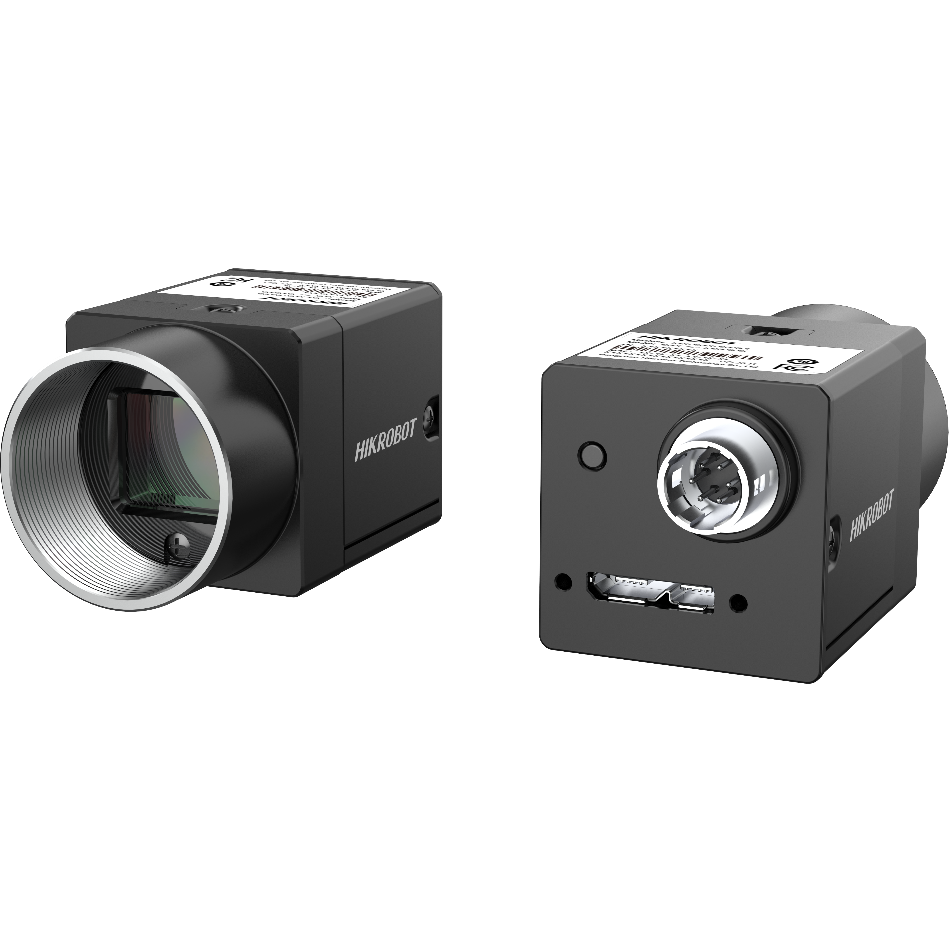

Hikrobot 5MP Area Scan Camera, USB3, GMAX2505, Color MV-CU050-90UC

https://annolution.com/web/image/product.template/8324/image_1920?unique=459fbb0
  • Adopts brand new design to reduce power consumption.
  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
  • Supports customized ROI, horizontal and vertical reverse image output.
  • Adopts compact design for flexible installation.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CU050-90UC
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode USB3.0, compatible with USB2.0 1/2" C-mount 2.5 μm × 2.5 μm CU Area Scan Camera GMAX2505 2600 × 2160 MV-CU050-90UC 5MP Area Scan Camera, USB3, GMAX2505, Color 59.8 fps @2600 × 2160 Bayer BG 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 2600 × 2160
    Schnittstelle zur Datenübertragung USB3.0, compatible with USB2.0
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CU050-90UC
    Sensor Model GMAX2505
    Pixel Size 2.5 μm × 2.5 μm
    Sensor Size 1/2"
    Max Frame Rate 59.8 fps @2600 × 2160 Bayer BG 8
    Mono/Color Color
    Lens Mount C-mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Bayer BG 8/10/10Packed/12/12Packed
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
    Power Supply 9 VDC to 24 VDC, supports USB3.0 power supply
    Power Consumption 2.2 W
    Dimension 29 mm × 29 mm ×
    Weight 94 g
    Ingress Protection IP30
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 80% RH, non-condensing
    Client Software MVS or third-party software meeting with USB3 Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
