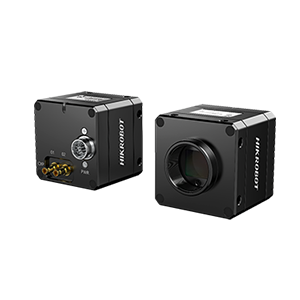

Hikrobot 5MP Area Scan Camera, GMAX2505, CXP-6, Color, C-mount, without fan MV-CH050-90XC-C-NN
- Resolution of 2592 × 2160, pixel size of 2.5 µm × 2.5 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Supports LSC correction, super palette, CCM, and SuperBayer.
- Adopts CXP-6 interface to transmit data.
- Supports Off, Once, and Continuous exposure modes.
- Compatible with CoaXPress Protocol and GenlCam Standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 2592 × 2160 |
| Schnittstelle zur Datenübertragung | CoaXPress with DIN interface |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH050-90XC-C-NN |
| Sensor Model | Gpixel GMAX2505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1/2" |
| Max Frame Rate | 213 fps @ 2592 × 2160 Bayer BG 8 |
| Mono/Color | Color |
| Lens Mount | C-mount, flange focal length 17.52 mm |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8, Bayer BG 8/12 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 9 VDC to 24 VDC, CXP-1 supports PoCXP |
| Power Consumption | 4.8 W |
| Dimension | 50 mm × 50 mm × |
| Weight | 220 g |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% RH to 95% RH, no condensation |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows XP/7/10/11, 32/64-bit Linux |
