Hikrobot 5MP Area Scan Camera, GigE, GMAX3405, 2nd Basic, Color MV-CS050-90GC
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment for gain, exposure control, white balance, contrast ratio, Gamma correction, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 2448 × 2048 |
| Schnittstelle zur Datenübertragung | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CS050-90GC |
| Sensor Model | GMAX3405 |
| Pixel Size | 3.4 μm × 3.4 μm |
| Sensor Size | 2/3" |
| Max Frame Rate | 24.2 fps @ 2448 × 2048 Bayer GB 8 |
| Mono/Color | Color |
| Lens Mount | C-mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12, Bayer GB 8/10/10Packed/12/12Packed, |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Power Consumption | 2.3 W |

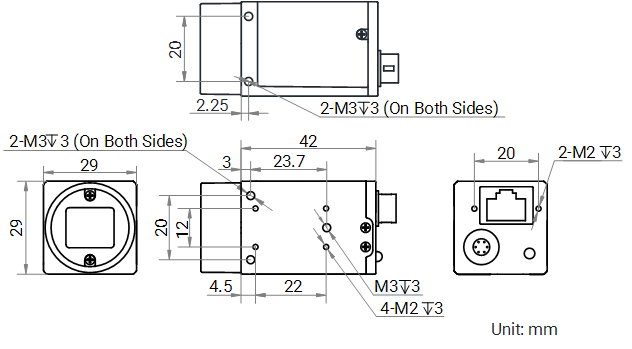

| Dimension | 29 mm × 29 mm × |
| Weight | 100 g |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10/11, 32/64-bit Linux, and 64-bit MacOS |
