  3. Hikrobot 4MP Area Scan Camera, USB3.0, 2nd Gen, Color. MV-CS040-A0UC
test

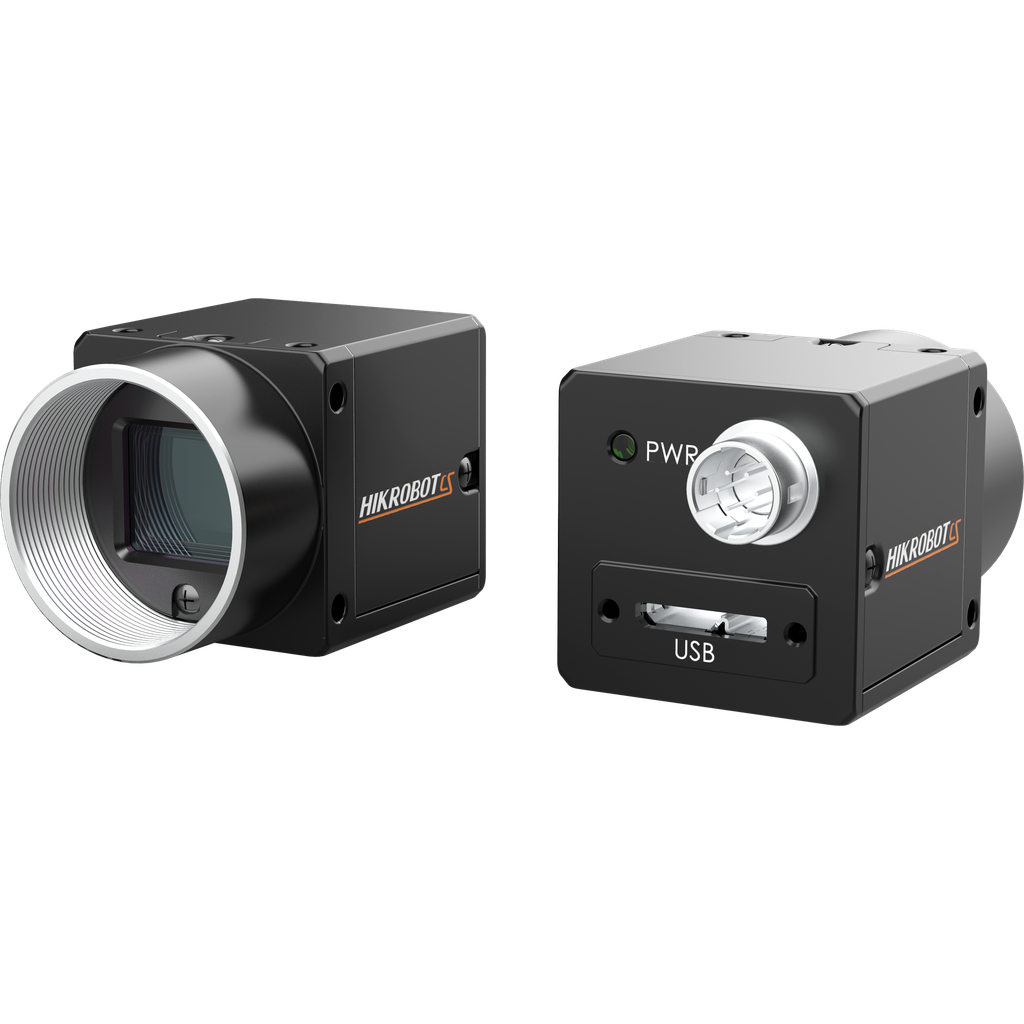

Hikrobot 4MP Area Scan Camera, USB3.0, 2nd Gen, Color. MV-CS040-A0UC

https://annolution.com/web/image/product.template/8273/image_1920?unique=459fbb0
  • Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range and high quality images.
  • Resolution of 2048 × 2048, pixel size of 5.5 μm × 5.5 μm.
  • Supports hardware trigger, software trigger, and free run.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CS040-A0UC
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode USB3.0, compatible with USB2.0 1" C-mount 5.5 μm × 5.5 μm 2048 × 2048 CS Area Scan Camera MV-CS040-A0UC 4MP Area Scan Camera, USB3.0, 2nd Gen, Color. 90.1 fps @2048 × 2048 Bayer GB 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 2048 × 2048
    Schnittstelle zur Datenübertragung USB3.0, compatible with USB2.0
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CS040-A0UC
    Pixel Size 5.5 μm × 5.5 μm
    Sensor Size 1"
    Max Frame Rate 90.1 fps @2048 × 2048 Bayer GB 8
    Mono/Color Color
    Lens Mount C-mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12,
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 9 VDC to 24 VDC, supports USB3.0 power supply
    Power Consumption 2.4 W
    Dimension 29 mm × 29 mm ×
    Weight 88 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or third-party software meeting with USB3.0 Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
    Stichwörter
    Stichwörter
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode USB3.0, compatible with USB2.0 1" C-mount 5.5 μm × 5.5 μm 2048 × 2048 CS Area Scan Camera MV-CS040-A0UC 4MP Area Scan Camera, USB3.0, 2nd Gen, Color. 90.1 fps @2048 × 2048 Bayer GB 8
