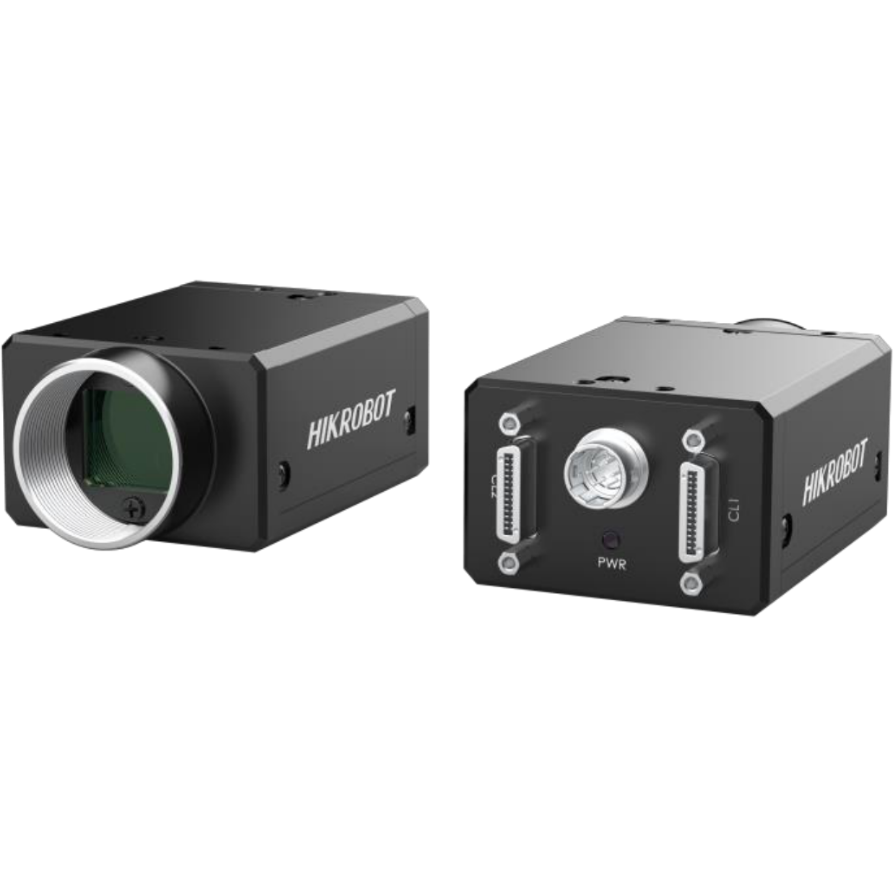

Hikrobot 4MP Area Scan Camera, Camera Link MV-CH040-A0CM
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
- Supports customized ROI and horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
- Supports Base, Medium, Full, 80-bit configuration mode.
- Compatible with Camera Link V2.0 Protocol and GenlCam Standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 2048 × 2048 |
| Schnittstelle zur Datenübertragung | Camera Link with SDR Connector |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH040-A0CM |
| Pixel Size | 5.5 μm × 5.5 μm |
| Sensor Size | 1" |
| Max Frame Rate | 180 fps @2040 × 2048 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | C-mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoCL |
| Power Consumption | 3.6 W |
| Dimension | 44 mm × 29 mm × |
| Weight | 100 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
