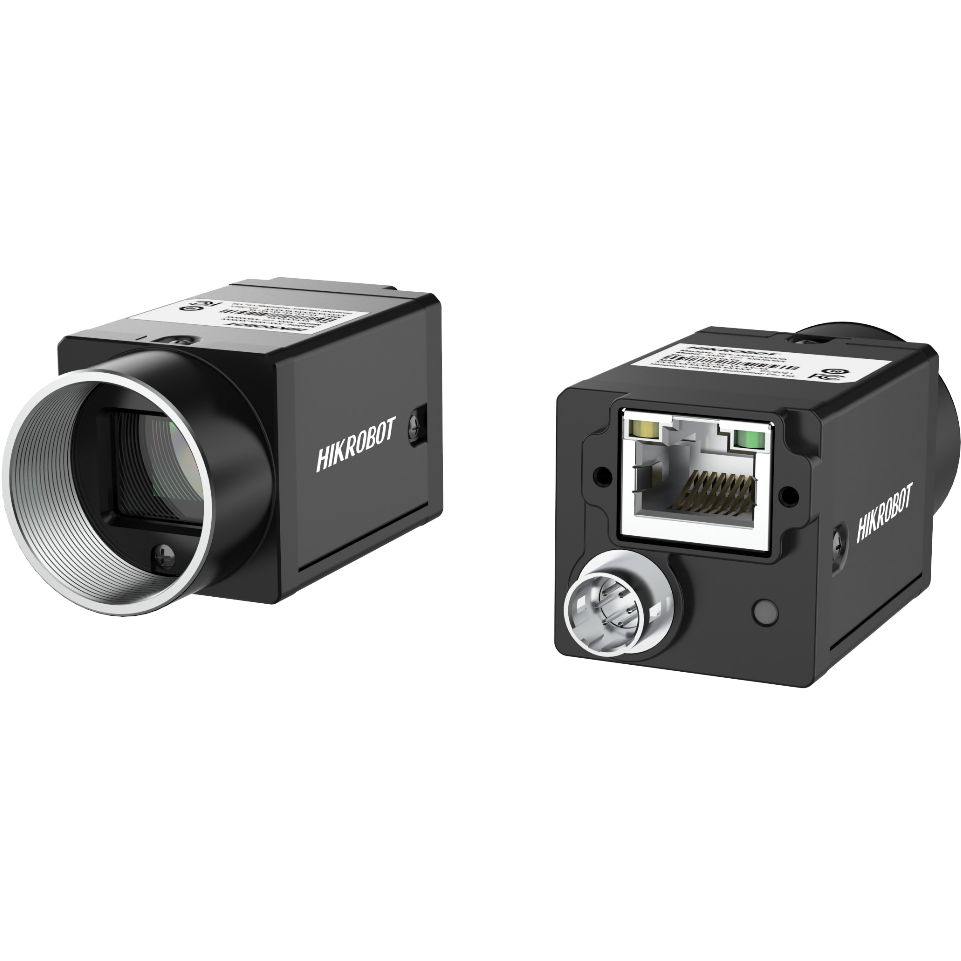

Hikrobot 2MP Area Scan Camera, GigE, IMX290, WDR MV-CU020-19GC(850nm Bandpass)

https://annolution.com/web/image/product.template/8311/image_1920?unique=a4b7c0b
  • Adopts low consumption platform with stable performance.
  • Supports wide dynamic range, noise reduction and sharpness functions.
  • Customized filter with strong anti-interference ability is optional.
  • Supports hardware trigger, software trigger, free run, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CU020-19GC(850nm Bandpass)
    Area Scan Camera CMOS Gigabit Ethernet, compatible with Fast Ethernet Off/Once/Continuous exposure mode Mono C-mount Sony® IMX290 2.9 μm × 2.9 μm 1/2.8" 1920 × 1080 CU Area Scan Camera 56 fps @1920 × 1080 Mono 8 MV-CU020-19GC(850nm Bandpass) 2MP Area Scan Camera, GigE, IMX290, WDR


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 1920 × 1080
    Schnittstelle zur Datenübertragung Gigabit Ethernet, compatible with Fast Ethernet
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2
    Decimation Not supported
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CU020-19GC(850nm Bandpass)
    Sensor Model Sony® IMX290
    Pixel Size 2.9 μm × 2.9 μm
    Sensor Size 1/2.8"
    Max Frame Rate 56 fps @1920 × 1080 Mono 8
    Mono/Color Mono
    Lens Mount C-mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 9 VDC to 24 VDC, supports PoE
    Power Consumption 2.1 W

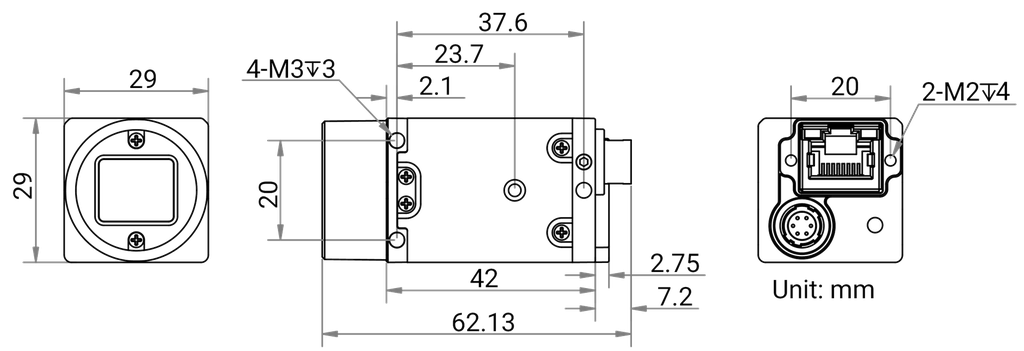

    Dimension 29 mm × 29 mm ×
    Weight 100 g
    Ingress Protection IP30
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 80% RH, non-condensing
    Client Software MVS or third-party software meeting with GigE Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
