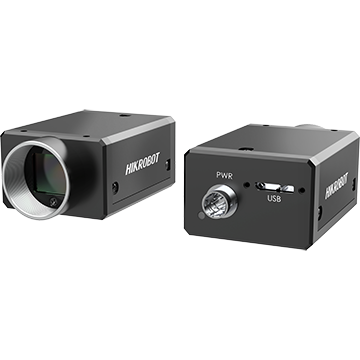

Hikrobot 25MP Area Scan Camera, USB3, GMAX0505, Color, V4 MV-CH250-90UC V4
- Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Supports LSC correction, binning, image reverse, etc.
- Supports hardware trigger, software trigger, and free run.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 5120 × 5120 |
| Schnittstelle zur Datenübertragung | USB3.0, compatible with USB2.0 |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH250-90UC V4 |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Max Frame Rate | 14 fps @5120 × 5120 Bayer BG 8 |
| Mono/Color | Color |
| Lens Mount | C-mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12, |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 12 VDC to 24 VDC, supports USB3.0 power supply |
| Power Consumption | 3.6 W |
| Dimension | 29 mm × 44 mm × |
| Weight | 100 g |
| Ingress Protection | IP30 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
