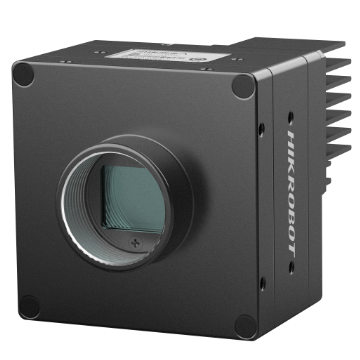

Hikrobot 25MP Area Scan Camera, CXP-12, GMAX0505, Mono, V2, C-mount MV-CH250-90YM-C-NN

https://annolution.com/web/image/product.template/8218/image_1920?unique=46956e7
  • Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
  • Adopts global shutter CMOS sensor to provide high dynamic range and high-quality image.
  • Adopts CXP-12 interface to transmit data.
  • Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH250-90YM-C-NN
    Area Scan Camera CMOS Off/Once/Continuous exposure mode Mono 1.1" CH Area Scan Camera 2.5 μm × 2.5 μm 5120 × 5120 Gpixel GMAX0505 CoaXPress with micro-BNC interface C-mount, flange focal length 17.52 mm M58*0.75, flange focal length 11.48 mm MV-CH250-90YM-C-NN 25MP Area Scan Camera, CXP-12, GMAX0505, Mono, V2, C-mount 150 fps @ 5120 × 5120 Mono 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 5120 × 5120
    Schnittstelle zur Datenübertragung CoaXPress with micro-BNC interface
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH250-90YM-C-NN
    Sensor Model Gpixel GMAX0505
    Pixel Size 2.5 μm × 2.5 μm
    Sensor Size 1.1"
    Max Frame Rate 150 fps @ 5120 × 5120 Mono 8
    Mono/Color Mono
    Lens Mount C-mount, flange focal length 17.52 mm M58*0.75, flange focal length 11.48 mm
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC, UL
    Pixel Format Mono 8/10/12

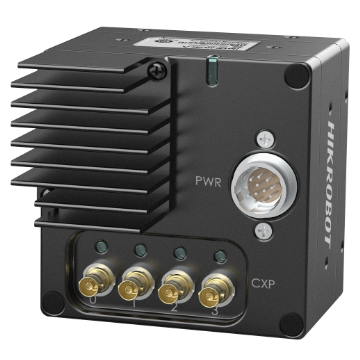

    Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power Supply 12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP
    Power Consumption 9.9 W

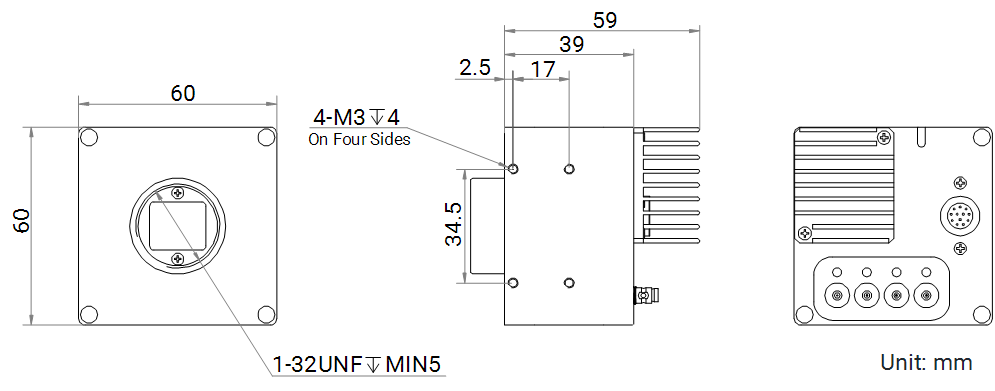

    Dimension 60 mm × 60 mm ×
    Ingress Protection IP40
    Storage Temperature –30 °C to 80 °C
    Humidity 20% RH to 95% RH, no condensation
    Client Software MVS or third-party software meeting with CoaXPress Protocol
    Operating System 32/64-bit Windows XP/7/10/11, 32/64-bit Linux
