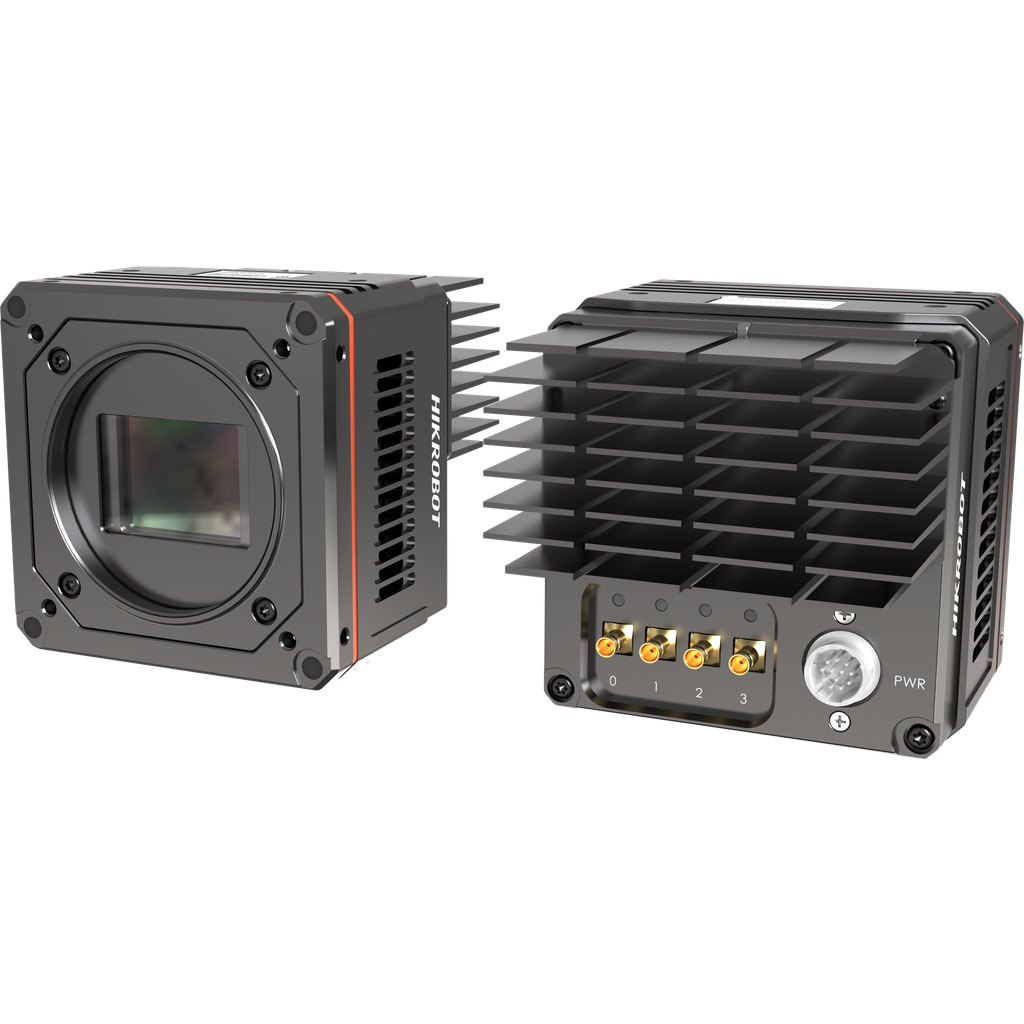

Hikrobot 25MP Area Scan Camera, 4-link CXP-6, Mono, M58-mount, fanless MV-CH250-20XM-M58S-NN
- Resolution of 5120 × 5120, and pixel size of 4.5 µm × 4.5 µm.
- Supports binning, reversing image, etc.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Adopts CXP-6 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 5120 × 5120 |
| Schnittstelle zur Datenübertragung | CoaXPress with DIN interface |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH250-20XM-M58S-NN |
| Sensor Model | OnSemi Python25K |
| Pixel Size | 4.5 μm × 4.5 μm |
| Sensor Size | 23 mm × 23 mm |
| Max Frame Rate | 79.9 fps @5120 × 5120 |
| Mono/Color | Mono |
| Lens Mount | M58-mount, optical back focal length 11.48 mm (0.5") |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12 |
| Digital I/O | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 9 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power Consumption | 10.8 W |
| Dimension | 84 mm × 84 mm × |
| Weight | 730 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10 |
