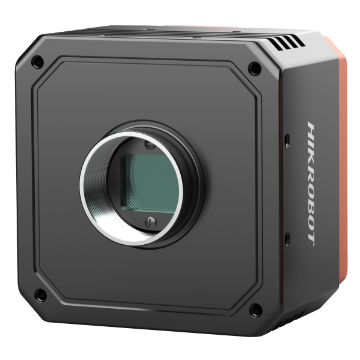

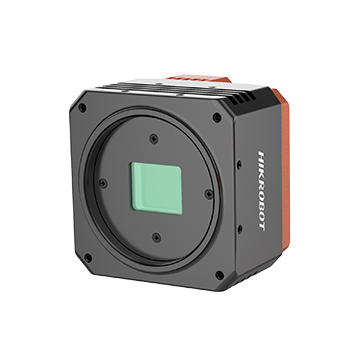

Hikrobot 25MP Area Scan Camera, 10GigE, GMAX0505, Color, M58-mount, with fan MV-CH250-90TC-M58S-NF
- Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
- Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
- Supports adjustment for exposure time, gain, Look-Up Table (LUT), Gamma correction, etc.
- Mounting holes on panels for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 5120 × 5120 |
| Schnittstelle zur Datenübertragung | 10 Gigabit Ethernet, compatible with Gigabit Ethernet |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH250-90TC-M58S-NF |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Max Frame Rate | 41.5 fps @5120 × 5120 Bayer BG 8 |
| Mono/Color | Color |
| Lens Mount | Flange focal length 11.48 mm (0.5") |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12, |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Power Consumption | 10.0 W |

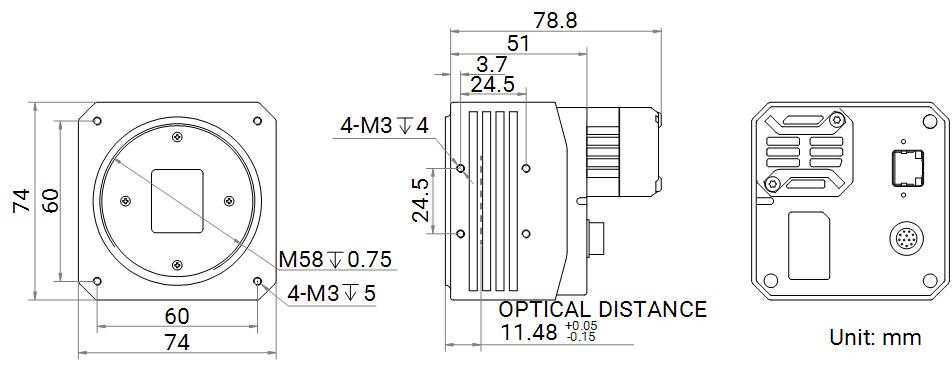

| Dimension | 74 mm × 74 mm × |
| Weight | 550 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
