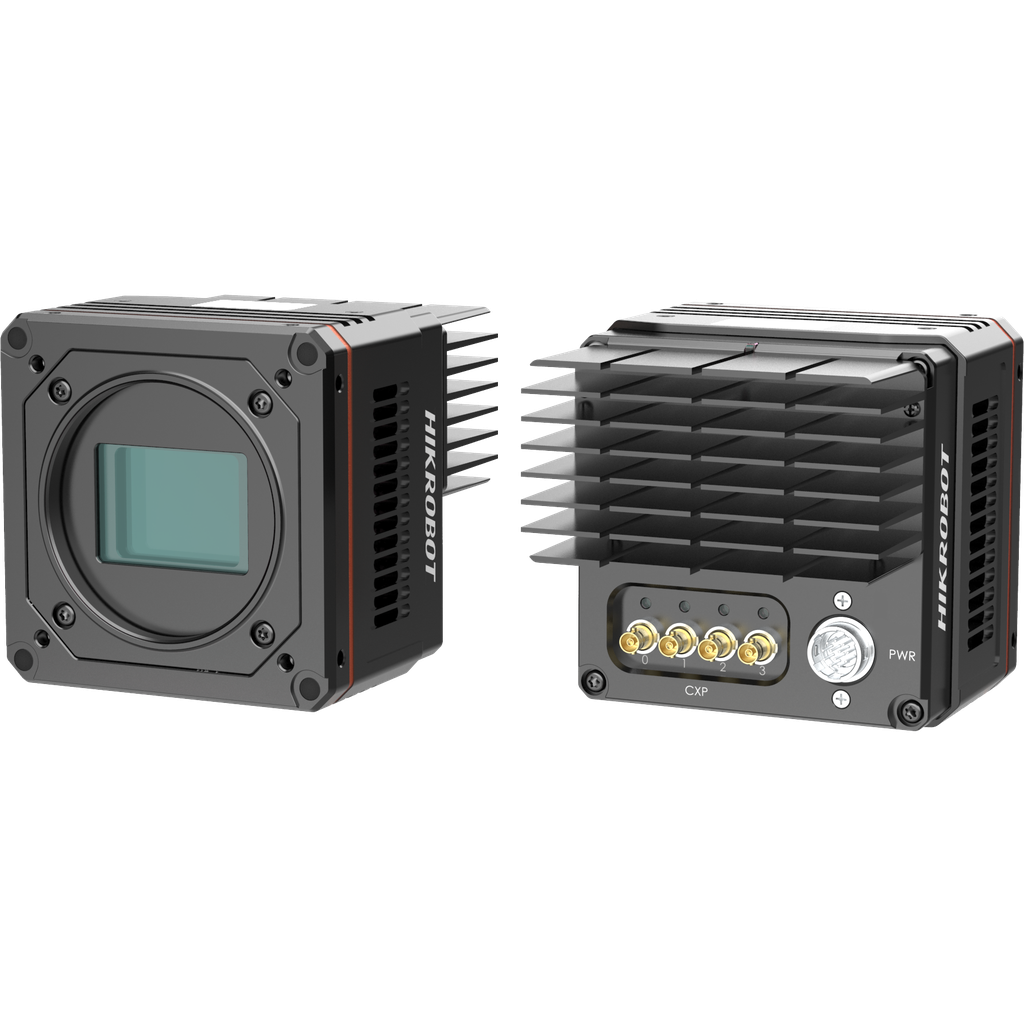

Hikrobot 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono MV-CH210-90YM-M58S-NN

https://annolution.com/web/image/product.template/8192/image_1920?unique=a2825e7
  • Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm.
  • Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
  • Supports LSC sequencer polling function.
  • Low power consumption without fans.
  • Adopts CXP-12 interface to transmit data.
  • Compatible with CoaXPress Protocol and GenlCam Standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH210-90YM-M58S-NN
    Area Scan Camera CMOS Off/Once/Continuous exposure mode Mono 4.5 μm × 4.5 μm CH Area Scan Camera CoaXPress with Micro-BNC interface Gpixel Gsprint4521 23.04 mm × 18.43 mm 5120 × 4096 222 fps @ 5120 × 4096 Mono 8 M58 × 0.75, flange back length 11.48 mm MV-CH210-90YM-M58S-NN 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 5120 × 4096
    Schnittstelle zur Datenübertragung CoaXPress with Micro-BNC interface
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH210-90YM-M58S-NN
    Sensor Model Gpixel Gsprint4521
    Pixel Size 4.5 μm × 4.5 μm
    Sensor Size 23.04 mm × 18.43 mm
    Max Frame Rate 222 fps @ 5120 × 4096 Mono 8
    Mono/Color Mono
    Lens Mount M58 × 0.75, flange back length 11.48 mm
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12
    Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power Supply 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
    Power Consumption 18.0 W
    Dimension 84 mm × 84 mm ×
    Weight 650 g
    Ingress Protection IP40
    Storage Temperature –30 °C to 70 °C
    Humidity 20% RH to 95% RH (no condensation)
    Client Software MVS or frame grabber software meeting with CoaXPress Protocol
    Operating System 32/64-bit Windows 7/10
