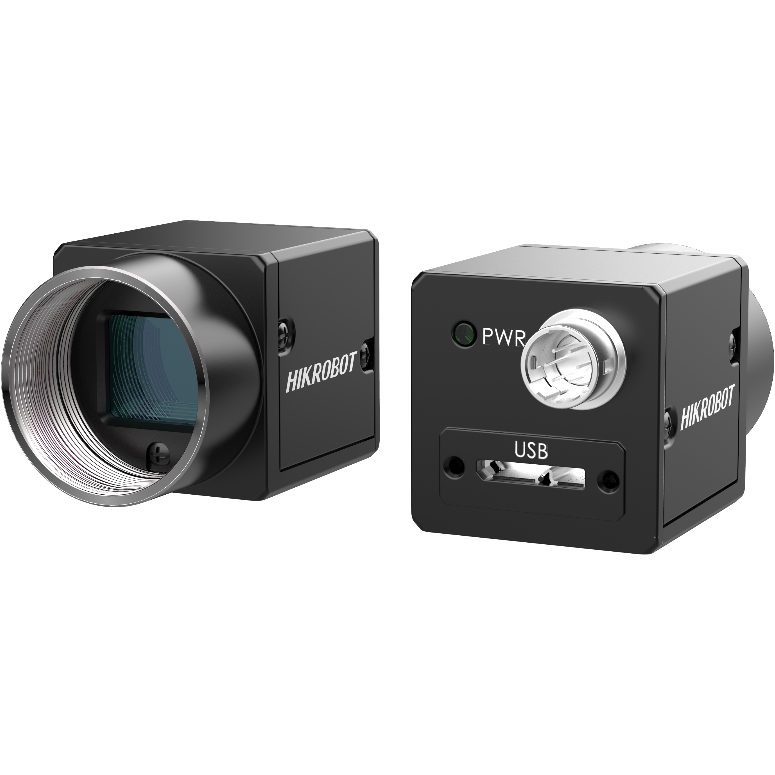

Hikrobot 20MP Area Scan Camera, USB3,IMX183,Mono,Compact size MV-CE200-11UM
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT.
- Supports hardware trigger, software trigger, and free run.
- Supports customized ROI to increase frame rate.
- Adopts compact design for small spatial installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 5472 × 3648 |
| Schnittstelle zur Datenübertragung | USB3.0, compatible with USB2.0 |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Model Number | MV-CE200-11UM |
| Sensor Model | Sony® IMX183 |
| Pixel Size | 2.4 μm × 2.4 μm |
| Sensor Size | 1" |
| Max Frame Rate | 19.2 fps @5472 × 3648 |
| Mono/Color | Mono |
| Lens Mount | C-Mount |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Global Reset |
| Certification | CE, FCC, RoHS, KC |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power Consumption | 2.8 W |
| Dimension | 29 mm × 29 mm × |
| Weight | 80 g |
| Ingress Protection | IP30 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
