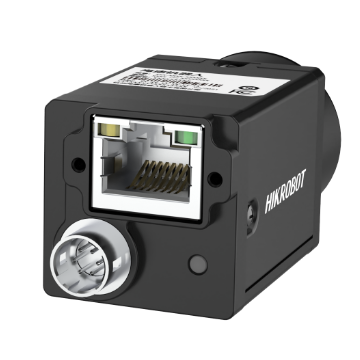

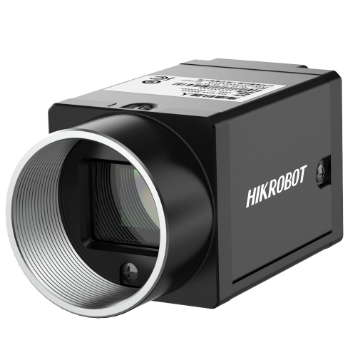

Hikrobot 20MP Area Scan Camera, GigE, AR2020, Mono MV-CU200-20GM
- Adopts low power consumption design with stable performance.
- Supports auto and manual adjustment of gain, exposure time, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 5120 × 3840 |
| Schnittstelle zur Datenübertragung | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Not supported |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CU200-20GM |
| Sensor Model | AR2020 |
| Pixel Size | 1.4 μm × 1.4 μm |
| Sensor Size | 1/1.8" |
| Max Frame Rate | 5.9 fps @ 5120 × 3840 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | C-mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/10 Packed/12/12 Packed |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC; PoE is optional |
| Power Consumption | 2.0 W |
| Weight | 100 g |
| Ingress Protection | IP30 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% RH to 95% RH, no condensation |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10/11, 32/64-bit Linux and 64-bit MacOS |
