  3. Hikrobot 151MP Area Scan Camera, CoaXPress, IMX411, Color, M72-mount, with fan MV-CH1510-10XC-M72-NF
test

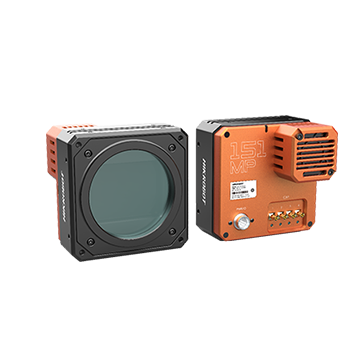

Hikrobot 151MP Area Scan Camera, CoaXPress, IMX411, Color, M72-mount, with fan MV-CH1510-10XC-M72-NF

https://annolution.com/web/image/product.template/8185/image_1920?unique=25467e3
  • Resolution of 14208 × 10640, pixel size of 3.76 µm × 3.76 µm.
  • Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality image.
  • Adopts CXP-6 interface to transmit data.
  • Supports the flat field correction.
  • Compatible with CoaXPress Protocol, GenlCam Standard, third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH1510-10XC-M72-NF
    Area Scan Camera Color CH Area Scan Camera CoaXPress with DIN interface 3.76 μm × 3.76 μm Sony® IMX411 66.7 mm 14208 × 10640 MV-CH1510-10XC-M72-NF 151MP Area Scan Camera, CoaXPress, IMX411, Color, M72-mount, with fan Rolling shutter CMOS 6.2 fps @14208 × 10640 M72*0.75, optical back focal length 19.55 mm Off/Once/Continuous exposure mode, supports Global Reset, Rolling


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 14208 × 10640
    Schnittstelle zur Datenübertragung CoaXPress with DIN interface
    Sensortyp Rolling shutter CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Not supported
    Reverse Image Supports horizontal reverse image output
    Model Number MV-CH1510-10XC-M72-NF
    Sensor Model Sony® IMX411
    Pixel Size 3.76 μm × 3.76 μm
    Sensor Size 66.7 mm
    Max Frame Rate 6.2 fps @14208 × 10640
    Mono/Color Color
    Lens Mount M72*0.75, optical back focal length 19.55 mm
    Exposure Mode Off/Once/Continuous exposure mode, supports Global Reset, Rolling
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12/16, Bayer RG 8/10/12/16, RGB 8
    Digital I/O 12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power Supply 12 VDC to 24 VDC
    Power Consumption 21.0 W
    Dimension 100 mm × 100 mm ×
    Weight 1 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software Frame grabber software meeting with CoaXPress Protocol
    Operating System 32/64-bit Windows 7/10 with 8 GB memory or above
