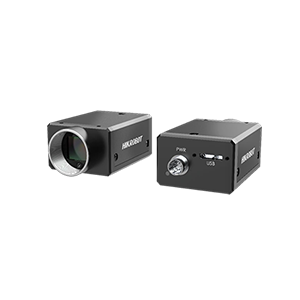

Hikrobot 14MP Area Scan Camera, Mono MV-CH140-60UM
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, free run.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 4708 × 2824 |
| Schnittstelle zur Datenübertragung | USB3.0, compatible with USB2.0 |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH140-60UM |
| Sensor Model | Stacked BSI |
| Pixel Size | 3 μm × 3 μm |
| Sensor Size | 1" |
| Max Frame Rate | 27 fps @4708 × 2824 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | C-Mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power Consumption | 4.0 W |
| Dimension | 29 mm × 44 mm × |
| Weight | 113 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS |
