  3. Hikrobot 12MP Area Scan Camera, USB3, IMX304, Color, V4 MV-CH120-10UC
test

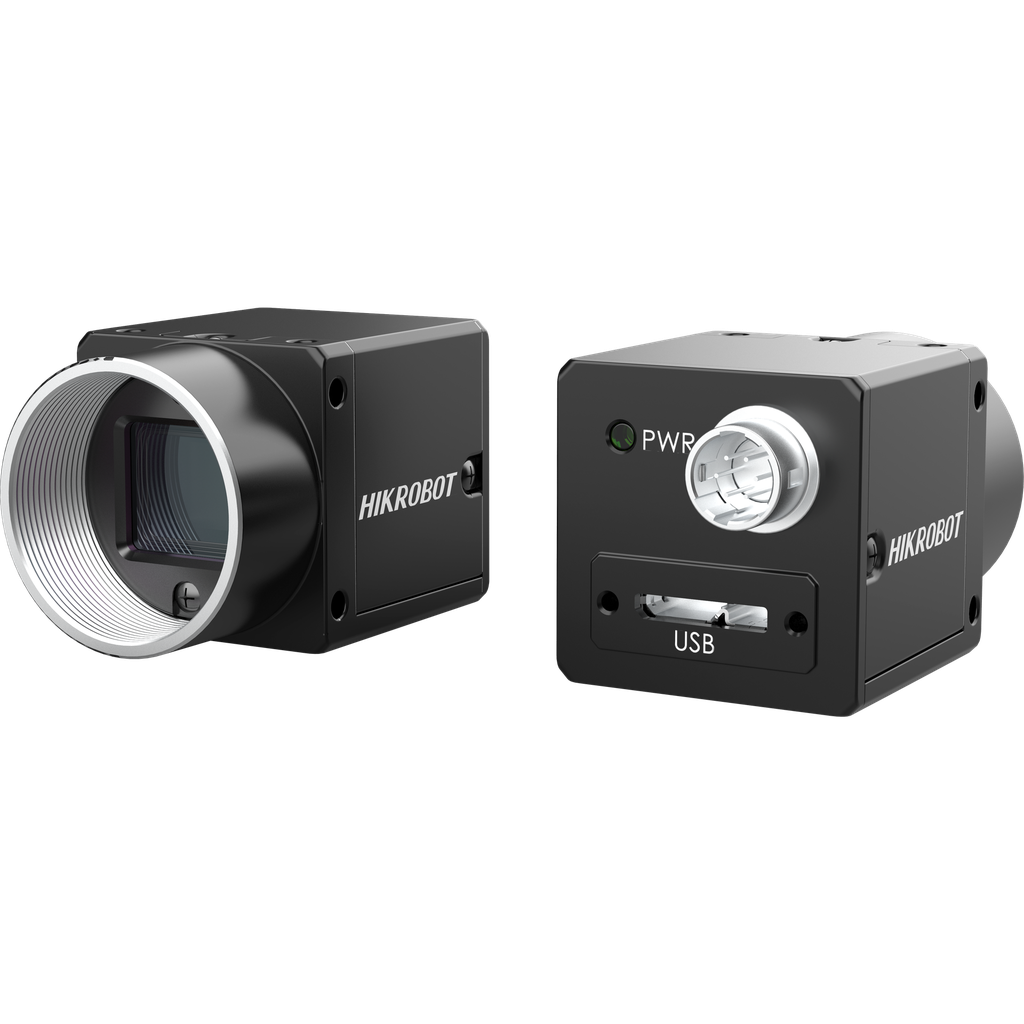

Hikrobot 12MP Area Scan Camera, USB3, IMX304, Color, V4 MV-CH120-10UC

https://annolution.com/web/image/product.template/8156/image_1920?unique=e30dfce
  • Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Supports hardware trigger, software trigger, free run, etc.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH120-10UC
    Area Scan Camera CMOS Color C-Mount Off/Once/Continuous exposure mode USB3.0, compatible with USB2.0 3.45 μm × 3.45 μm CH Area Scan Camera Sony® IMX304 4096 × 3000 MV-CH120-10UC 12MP Area Scan Camera, USB3, IMX304, Color, V4 1.1” 30.5 fps @4096 × 3000 Bayer RG 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 4096 × 3000
    Schnittstelle zur Datenübertragung USB3.0, compatible with USB2.0
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH120-10UC
    Sensor Model Sony® IMX304
    Pixel Size 3.45 μm × 3.45 μm
    Sensor Size 1.1”
    Max Frame Rate 30.5 fps @4096 × 3000 Bayer RG 8
    Mono/Color Color
    Lens Mount C-Mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10/12,
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 9 VDC to 24 VDC, supports USB3.0 power supply
    Power Consumption 3.2 W
    Dimension 29 mm × 29 mm ×
    Weight 80 g
    Ingress Protection IP40
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or third-party software meeting with USB 3.0 Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
    Stichwörter
    Stichwörter
    Area Scan Camera CMOS Color C-Mount Off/Once/Continuous exposure mode USB3.0, compatible with USB2.0 3.45 μm × 3.45 μm CH Area Scan Camera Sony® IMX304 4096 × 3000 MV-CH120-10UC 12MP Area Scan Camera, USB3, IMX304, Color, V4 1.1” 30.5 fps @4096 × 3000 Bayer RG 8
