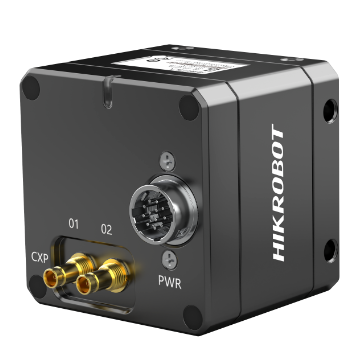

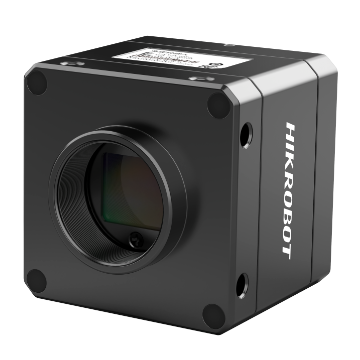

Hikrobot 12MP Area Scan Camera, GMAX3412, 2-link CXP-6, C-mount, without fan, Mono MV-CH120-90X2M-C-NN
- Resolution of 4096 × 3072, pixel size of 3.4 µm × 3.4 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Adopts CXP-6 interface to transmit data.
- Supports Off, Once, and Continuous exposure modes.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 4096 × 3072 |
| Schnittstelle zur Datenübertragung | CoaXPress with DIN interface |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH120-90X2M-C-NN |
| Sensor Model | Gpixel GMAX3412 |
| Pixel Size | 3.4 μm × 3.4 μm |
| Sensor Size | 1.1" |
| Max Frame Rate | 95 fps @ 4096 × 3072 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | C-mount, flange back focal length 17.52 mm |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 9 VDC to 24 VDC, CXP-1 supports PoCXP |
| Power Consumption | 5.8 W |
| Dimension | 50 mm × 50 mm × |
| Weight | 207 g |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows XP/7/10/11, 32/64-bit Linux |
