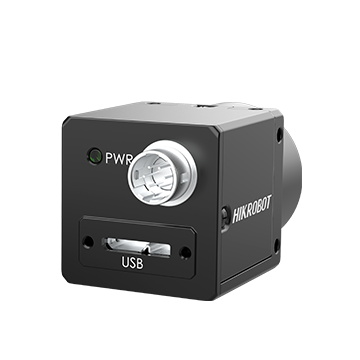

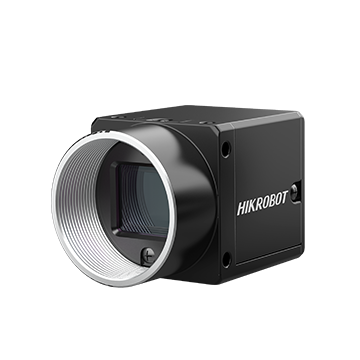

Hikrobot 12MP Area Scan Camera, Color MV-CH120-60UC
- Adopts new hardware platform to optimize logical resource and reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports CCM, Sequencer, Super Bayer, Super Palette, etc.
- Adopts brand new structure design and supports installation from four sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 4096 × 3000 |
| Schnittstelle zur Datenübertragung | USB 3.0, compatible with USB 2.0 |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CH120-60UC |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Max Frame Rate | 30.7 fps @ 4096 × 3000 Bayer GB 8 |
| Mono/Color | Color |
| Lens Mount | C-mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12, Bayer GB 8/10/10Packed /12/12Packed, YUV422Packed, YUV422_YUYV_Packed, |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power Consumption | 2.4 W |
| Dimension | 29 mm × 29 mm × |
| Weight | 80 g |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10/11, 32/64-bit Linux, and 64-bit MacOS |
