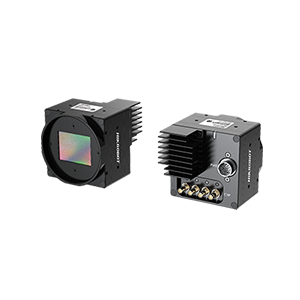

Hikrobot 12MP Area Scan Camera, CMV12000, CXP-6, Mono, M58-mount, Fanless MV-CH120-40XM-M58S-NN

https://annolution.com/web/image/product.template/8169/image_1920?unique=bd847b7
  • Resolution of 4096 × 3072, pixel size of 5.5 µm × 5.5 µm.
  • Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality images.
  • Supports LSC sequencer polling function.
  • Adopts CXP-6 interface to transmit data.
  • Compatible with CoaXPress Protocol and GenlCam Standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH120-40XM-M58S-NN
    Area Scan Camera CMOS Off/Once/Continuous exposure mode Mono CH Area Scan Camera 5.5 μm × 5.5 μm CoaXPress with DIN interface 4096 × 3072 MV-CH120-40XM-M58S-NN 12MP Area Scan Camera, CMV12000, CXP-6, Mono, M58-mount, Fanless AMS CMV12000 22.5 mm × 16.9 mm 188 fps @4096 × 3072 Mono 8 M58*0.75, flange focal length 11.48 mm (0.5")


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 4096 × 3072
    Schnittstelle zur Datenübertragung CoaXPress with DIN interface
    Sensortyp CMOS
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH120-40XM-M58S-NN
    Sensor Model AMS CMV12000
    Pixel Size 5.5 μm × 5.5 μm
    Sensor Size 22.5 mm × 16.9 mm
    Max Frame Rate 188 fps @4096 × 3072 Mono 8
    Mono/Color Mono
    Lens Mount M58*0.75, flange focal length 11.48 mm (0.5")
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Mono 8/10
    Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
    Power Supply 12 VDC to 24 VDC, CXP-1 and CXP-2 support PoCXP
    Power Consumption 11.6 W
    Dimension 60 mm × 60 mm ×
    Ingress Protection IP40
    Storage Temperature –30 °C to 80 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or frame grabber software meeting with CoaXPress Protocol
    Operating System 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux, 64-bit MacOS
