  3. Hikrobot 12MP Area Scan Camera, Camera Link, IMX253, Color MV-CH120-10CC
test

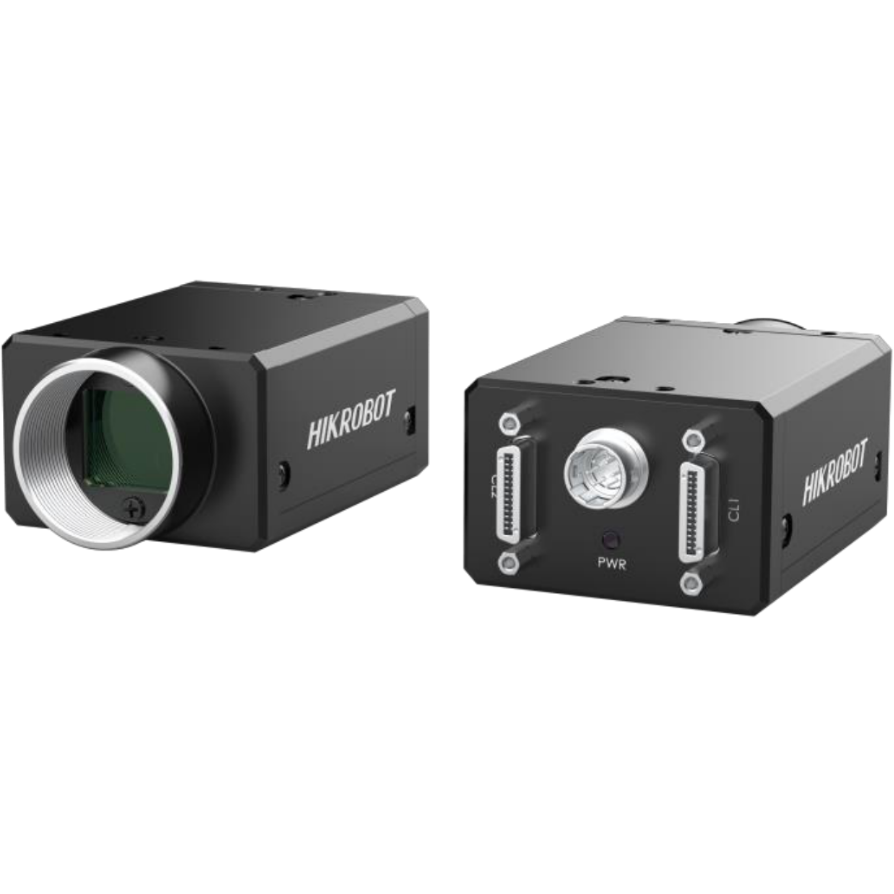

Hikrobot 12MP Area Scan Camera, Camera Link, IMX253, Color MV-CH120-10CC

https://annolution.com/web/image/product.template/8150/image_1920?unique=0b25f01
  • Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
  • Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
  • Adopts compact design with mounting holes for flexible mounting.
  • Compatible with Camera Link V2.0 Protocol, GenICam Standard, and the third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CH120-10CC
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode 3.45 μm × 3.45 μm 1.1" C-mount CH Area Scan Camera Camera Link with SDR interface MV-CH120-10CC 12MP Area Scan Camera, Camera Link, IMX253, Color Sony® IMX253 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit) 51.4 fps (Base/Medium/Full) 68.1 fps (80-bit)


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit)
    Schnittstelle zur Datenübertragung Camera Link with SDR interface
    Sensortyp CMOS
    Binning Not support
    Decimation Not support
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CH120-10CC
    Sensor Model Sony® IMX253
    Pixel Size 3.45 μm × 3.45 μm
    Sensor Size 1.1"
    Max Frame Rate 51.4 fps (Base/Medium/Full) 68.1 fps (80-bit)
    Mono/Color Color
    Lens Mount C-mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Bayer RG 8/10/12, RGB 8
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 9 VDC to 24 VDC
    Power Consumption 4.5 W
    Dimension 44 mm × 29 mm ×
    Weight 100 g
    Ingress Protection IP30
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 80% RH, non-condensing
    Client Software MVS or frame grabber software meeting with GenlCam Protocol
    Operating System 32/64-bit Windows XP/7/10
    Stichwörter
    Stichwörter
    Area Scan Camera CMOS Color Off/Once/Continuous exposure mode 3.45 μm × 3.45 μm 1.1" C-mount CH Area Scan Camera Camera Link with SDR interface MV-CH120-10CC 12MP Area Scan Camera, Camera Link, IMX253, Color Sony® IMX253 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit) 51.4 fps (Base/Medium/Full) 68.1 fps (80-bit)
