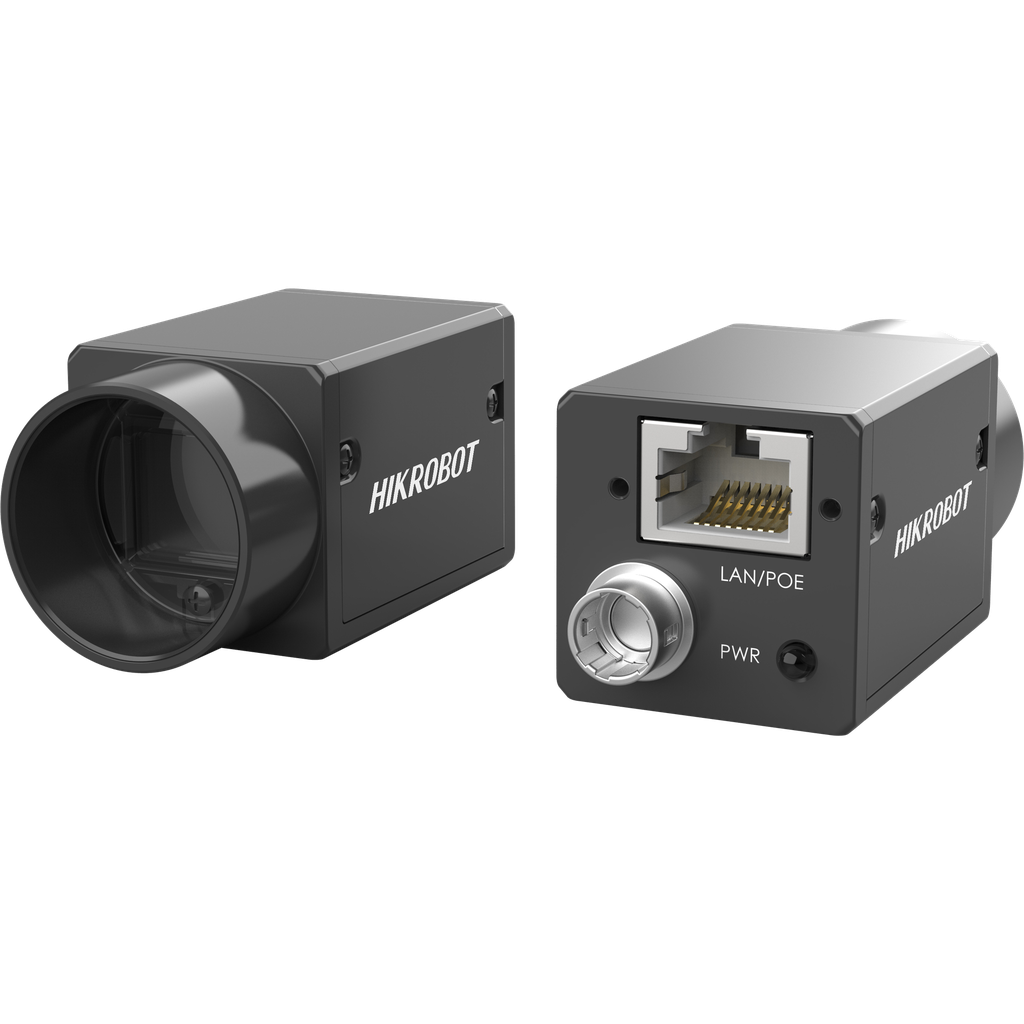

Hikrobot 10MP Area Scan Camera, GigE,IMT9J003,Color MV-CE100-30GC
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Up to 128 MB local memory for burst transmission and retransmission.
- Supports auto exposure control, LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, etc.
- Compatible with GigE Vision V1.2 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 3840 × 2748 |
| Schnittstelle zur Datenübertragung | Gigabit Ethernet, compatible with Fast Ethernet |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Not support |
| Reverse Image | Supports horizontal reverse image output |
| Model Number | MV-CE100-30GC |
| Sensor Model | MT9J003 |
| Pixel Size | 1.67 μm × 1.67 μm |
| Sensor Size | 1/2.3" |
| Max Frame Rate | 7 fps @3840 × 2748 |
| Mono/Color | Color |
| Lens Mount | C-Mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/12, Bayer GR 8/10/10p/12/12p |
| Image Buffer | 128 MB |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 12 VDC, supports PoE |
| Power Consumption | 2.6 W |
| Dimension | 29 mm × 29 mm × |
| Weight | 68 g |
| Ingress Protection | IP30 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
