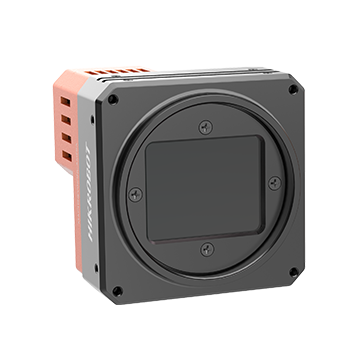

Hikrobot 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan MV-CH1010-10CM-M72-NF
- Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
- Supports FFC correction function.
- Provides camera with fan or TEC to meet different working temperature requirements.
- Supports 16-bit ADC output with high acquisition accuracy and wide dynamic range.
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Compatible with Camera Link V2.0 Protocol, GenlCam Standard, and the frame grabber software meeting with GenICam Protocol.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 11648 × 8740 |
| Schnittstelle zur Datenübertragung | Camera Link with SDR interface |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Model Number | MV-CH1010-10CM-M72-NF |
| Sensor Model | Sony® IMX461 |
| Pixel Size | 3.76 μm × 3.76 μm |
| Sensor Size | 55 mm |
| Max Frame Rate | 8.1 fps @ 11648 × 8740 Mono 8 |
| Mono/Color | Mono |
| Lens Mount | M72*0.75, flange back focal length 19.55 mm |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Global Reset |
| Certification | CE, RoHS, KC |
| Pixel Format | ADC 12-bit mode: Mono 8/10/12 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC |
| Power Consumption | 14.0 W |

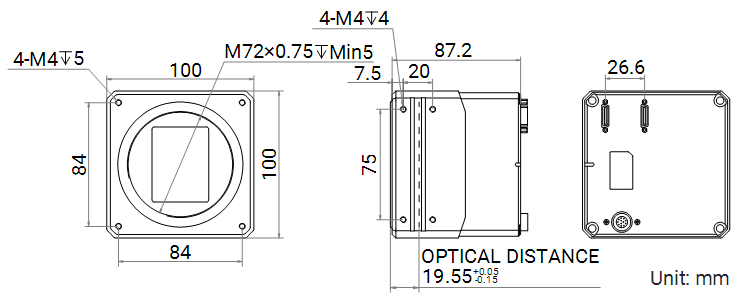

| Dimension | 90 mm × 90 mm × |
| Weight | 790 g |
| Ingress Protection | IP40 |
| Storage Temperature | –30 °C to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating System | 32/64-bit Windows 7/10/11 |
