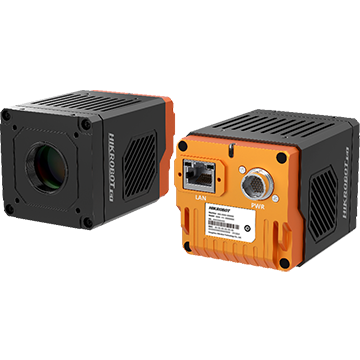

Hikrobot 1.3MP SWIR Camera, IMX990, GigE, with TEC and fan MV-CI013-GS-TF
- Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
- Supports TEC to provide good cooling effect.
- Multiple ISP functions like digital noise reduction, contrast ratio, etc.
- Adopts compact structure and design to meet spatial requirements.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 1280 × 1024 |
| Schnittstelle zur Datenübertragung | Gigabit Ethernet, compatible with Fast Ethernet |
| Sensortyp | InGaAs |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CI013-GS-TF |
| Sensor Model | Sony® IMX990 |
| Pixel Size | 5 μm × 5 μm |
| Sensor Size | 1/2" |
| Max Frame Rate | 91 fps @1280 × 1024 Mono 8 |
| Lens Mount | C-mount |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Certification | CE, RoHS, KC |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Power Consumption | 11.7 W |

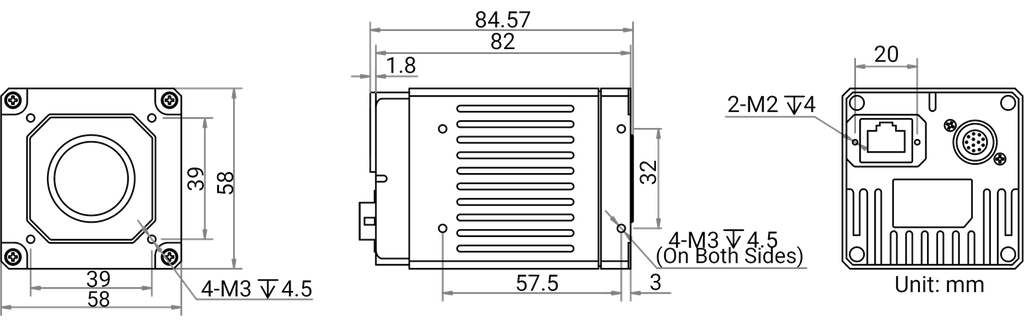

| Dimension | 58 mm × 58 mm × |
| Weight | 470 g |
| Ingress Protection | IP40 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
