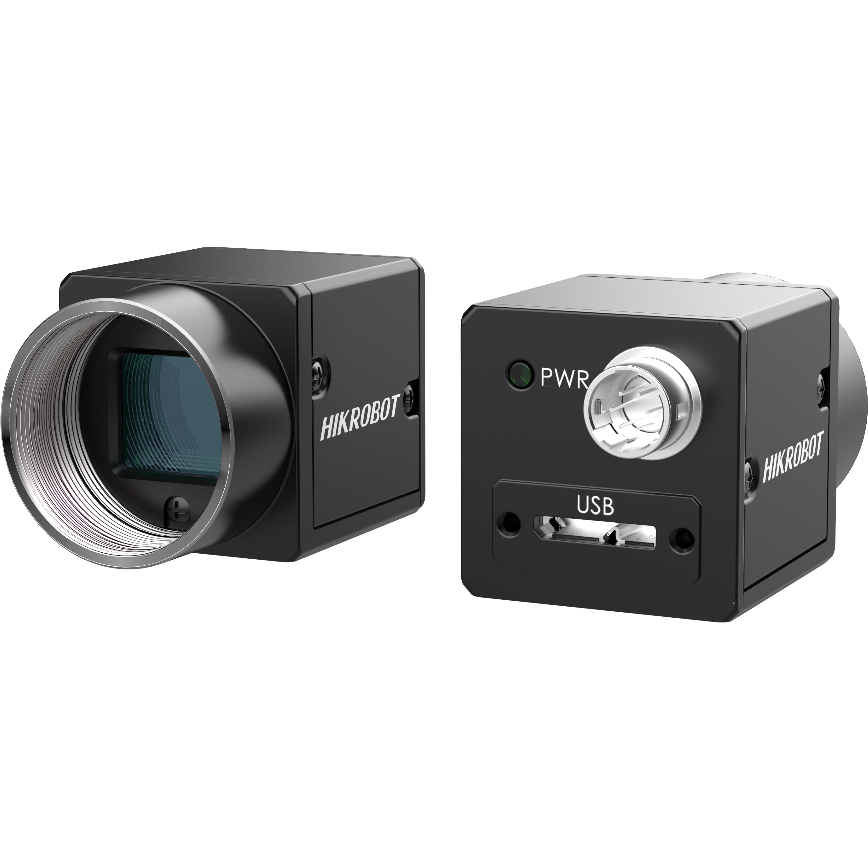

Hikrobot 1.3MP Area Scan Camera, USB3, Mono MV-CA013-A0UM

https://annolution.com/web/image/product.template/8058/image_1920?unique=459fbb0
  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
  • Supports customized ROI, horizontal and vertical reverse image output.
  • Adopts compact design for flexible installation.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CA013-A0UM
    Area Scan Camera CA Area Scan Camera CMOS 4.8 μm × 4.8 μm C-Mount Off/Once/Continuous exposure mode Mono USB3.0, compatible with USB2.0 1/2" 1280 × 1024 201 fps @1280 × 1024 MV-CA013-A0UM 1.3MP Area Scan Camera, USB3, Mono


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 1280 × 1024
    Schnittstelle zur Datenübertragung USB3.0, compatible with USB2.0
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CA013-A0UM
    Pixel Size 4.8 μm × 4.8 μm
    Sensor Size 1/2"
    Max Frame Rate 201 fps @1280 × 1024
    Mono/Color Mono
    Lens Mount C-Mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, FCC, RoHS, KC
    Pixel Format Mono 8/10/10Packed/12/12Packed
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
    Power Supply 9 VDC to 24 VDC, supports USB3.0 power supply and PoE
    Power Consumption 2.4 W
    Dimension 29 mm × 29 mm ×
    Weight 80 g
    Ingress Protection IP30
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or third-party software meeting with USB3 Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
