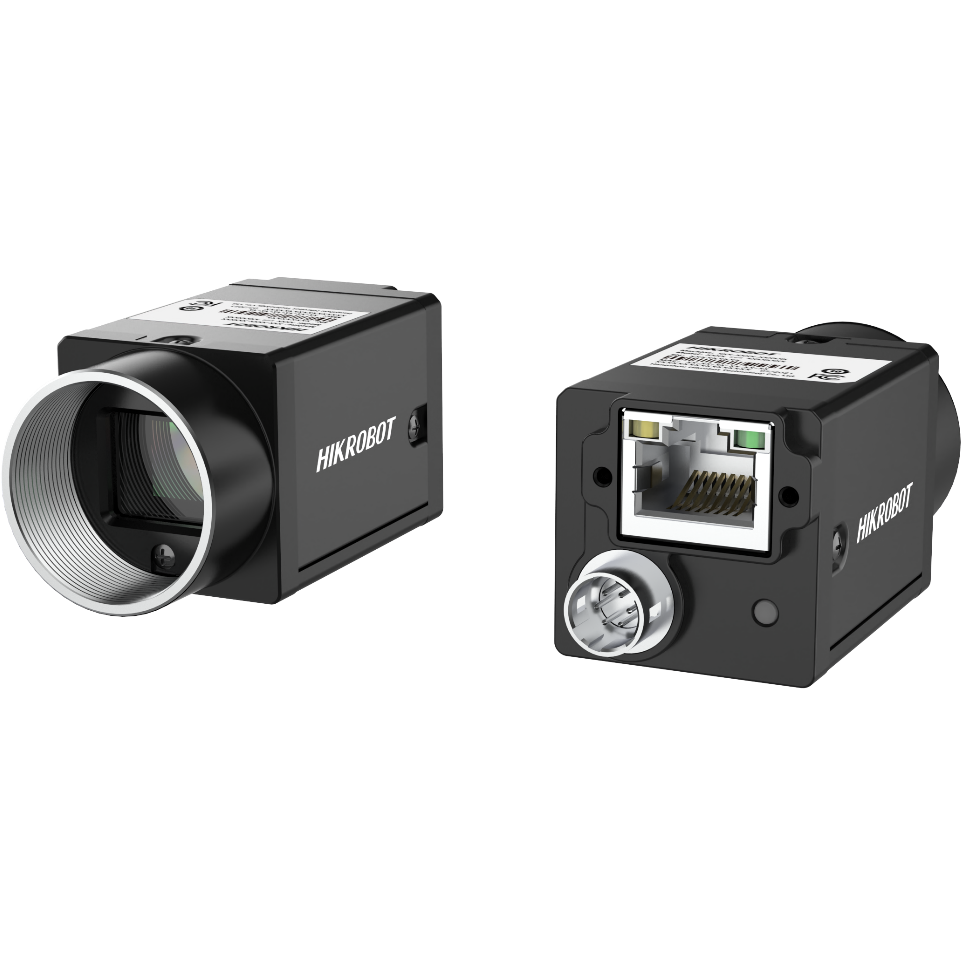

Hikrobot 1.3MP Area Scan Camera, GigE, Color, with PoE MV-CU013-A0GC

https://annolution.com/web/image/product.template/8306/image_1920?unique=d45892c
  • Adopts low power consumption design with stable performance.
  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
  • Supports hardware trigger, software trigger, free run, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

0,00 € 0.0 EUR 0,00 € Exklusive Steuern

0,00 € Exklusive Steuern

Preis auf Anfrage

    Diese Kombination existiert nicht.

    Artikelnummer: MV-CU013-A0GC
    Area Scan Camera CMOS 4.8 μm × 4.8 μm Color Gigabit Ethernet, compatible with Fast Ethernet Off/Once/Continuous exposure mode 1/2" 1280 × 1024 C-mount CU Area Scan Camera MV-CU013-A0GC 1.3MP Area Scan Camera, GigE, Color, with PoE 91.3 fps@1280 × 1024 Bayer GB 8


    Kontaktieren Sie uns



    Teilen

    Technische Daten

    Auflösung 1280 × 1024
    Schnittstelle zur Datenübertragung Gigabit Ethernet, compatible with Fast Ethernet
    Sensortyp CMOS
    Binning Supports 1 × 1, 2 × 2, 4 × 4
    Decimation Supports 1 × 1, 2 × 2, 4 × 4
    Reverse Image Supports horizontal and vertical reverse image output
    Model Number MV-CU013-A0GC
    Pixel Size 4.8 μm × 4.8 μm
    Sensor Size 1/2"
    Max Frame Rate 91.3 fps@1280 × 1024 Bayer GB 8
    Mono/Color Color
    Lens Mount C-mount
    Exposure Mode Off/Once/Continuous exposure mode
    Certification CE, RoHS, KC
    Pixel Format Bayer GB 8/10/10Packed/12/12Packed
    Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
    Power Supply 9 VDC to 24 VDC, PoE is optional
    Power Consumption 1.8 W

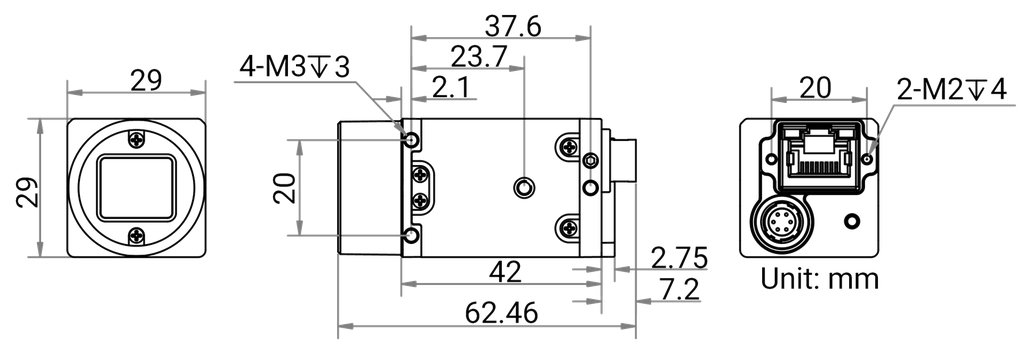

    Dimension 29 mm × 29 mm ×
    Weight 100 g
    Ingress Protection IP30
    Storage Temperature -30 °C to 70 °C
    Humidity 20% to 95% RH, non-condensing
    Client Software MVS or third-party software meeting with GigE Vision Protocol
    Operating System 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
