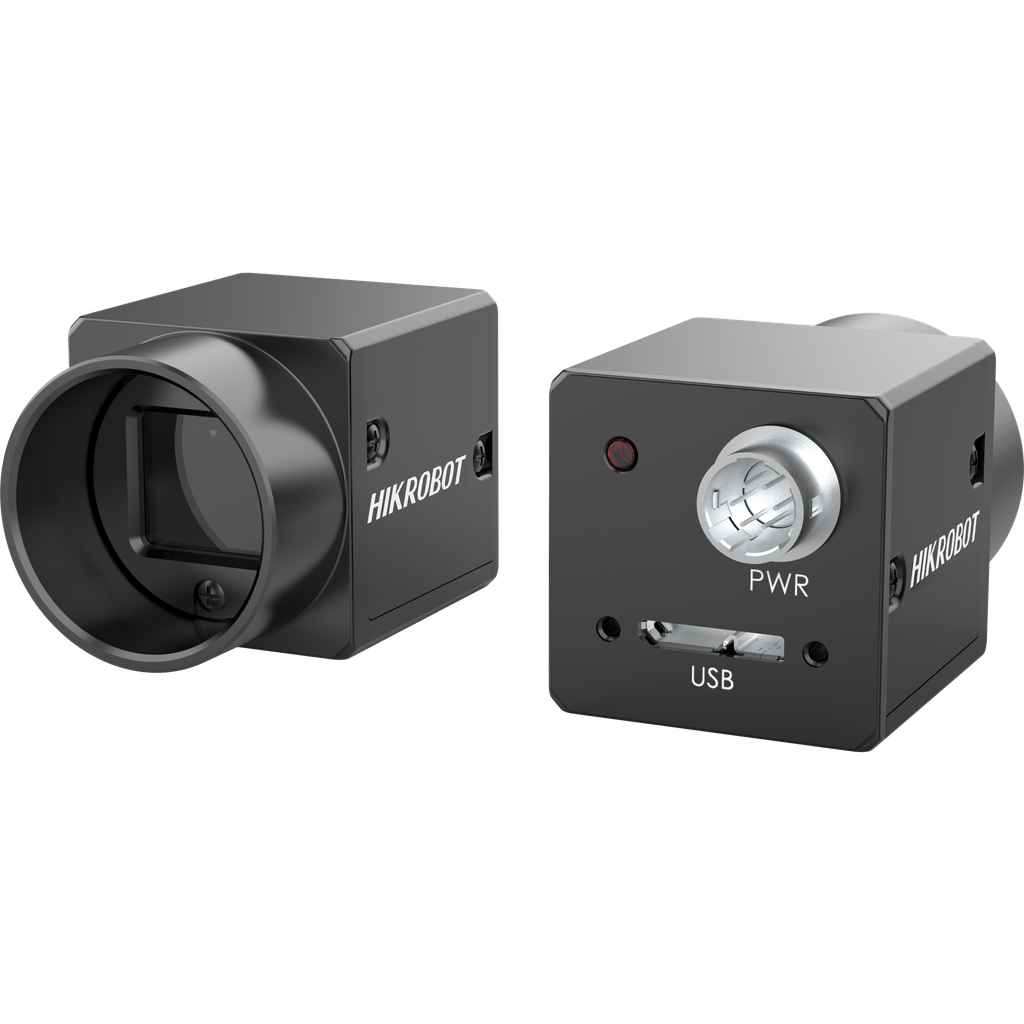

Hikrobot 0.4MP Area Scan Camera, USB3,IMX287,Mono MV-CA004-10UM
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 720 × 540 |
| Schnittstelle zur Datenübertragung | USB3.0, compatible with USB2.0 |
| Sensortyp | CMOS |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Model Number | MV-CA004-10UM |
| Sensor Model | Sony® IMX287 |
| Pixel Size | 6.9 μm × 6.9 μm |
| Sensor Size | 1/2.9" |
| Max Frame Rate | 526.5 fps @720 × 540 |
| Mono/Color | Mono |
| Lens Mount | C-Mount |
| Exposure Mode | Off/ Once /Continuous exposure mode |
| Certification | CE, FCC, RoHS, KC |
| Pixel Format | Mono 8/10/10p/12/12p |
| Image Buffer | 128 MB |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power Consumption | 3.0 W |
| Dimension | 29 mm × 29 mm × |
| Weight | 80 g |
| Ingress Protection | IP30 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
