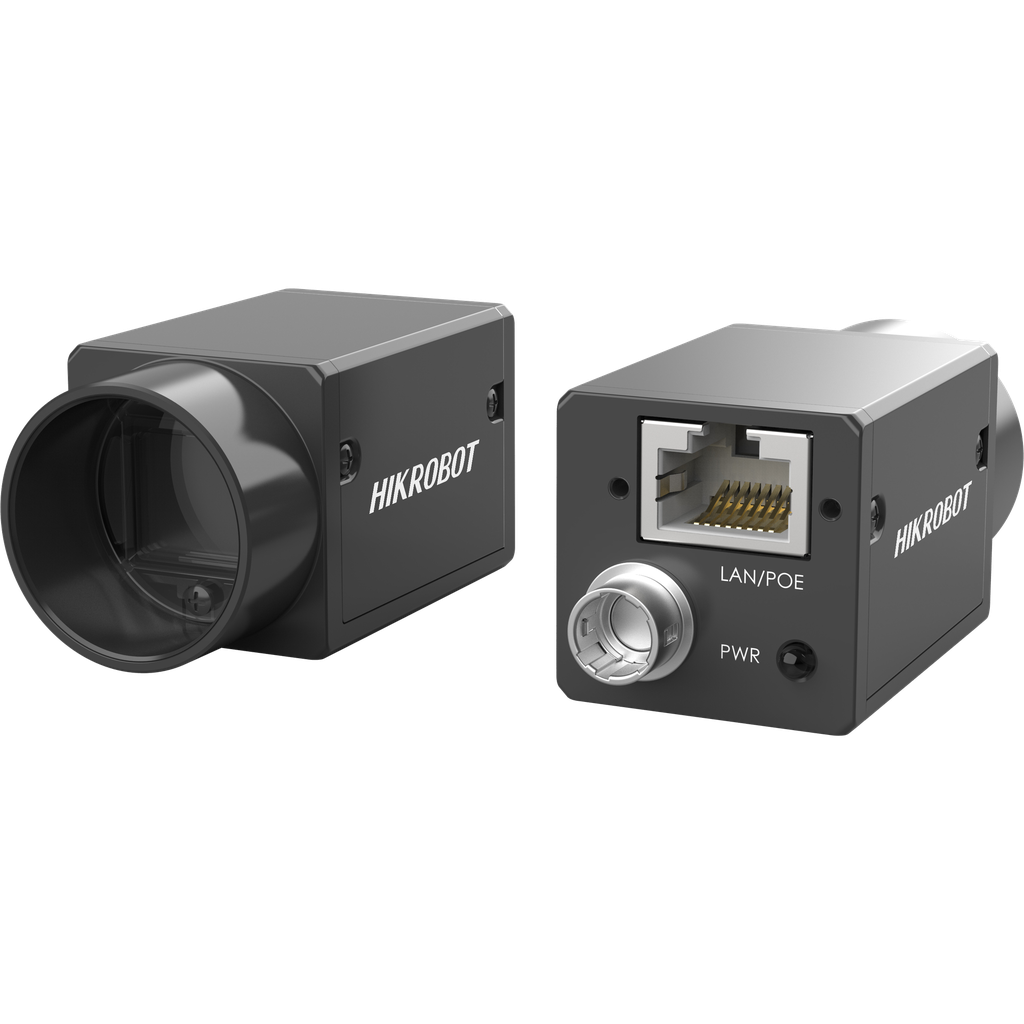

Hikrobot 0.4MP Area Scan Camera, GigE,IMX287,Mono MV-CA004-10GM
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports auto and manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc.
- Up to 128 MB local memory for burst transmission and retransmission.
- Compatible with GigE Vision Protocol V1.2, GenlCam standard and third-party software meeting with GigE Vision Protocol.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Technische Daten
| Auflösung | 720 × 540 |
| Schnittstelle zur Datenübertragung | Gigabit Ethernet, compatible with Fast Ethernet |
| Sensortyp | CMOS |
| Binning | Not support |
| Decimation | Not support |
| Reverse Image | Supports horizontal and vertical reverse image |
| Model Number | MV-CA004-10GM |
| Sensor Model | Sony® IMX287 |
| Pixel Size | 6.9 μm × 6.9 μm |
| Sensor Size | 1/2.9" |
| Max Frame Rate | 312.9 fps @720 × 540 |
| Mono/Color | Mono |
| Lens Mount | C-Mount |
| Exposure Mode | Off/ Once/ Continuous exposure mode |
| Certification | CE, FCC, RoHS, KC |
| Pixel Format | Mono 8/10/10p/12/12p |
| Image Buffer | 128 MB |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Power Consumption | 3.1 W |
| Dimension | 29 mm × 29 mm × |
| Weight | 68 g |
| Ingress Protection | IP30 |
| Storage Temperature | -30 °C to 70 °C |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux or 64-bit MacOS |
