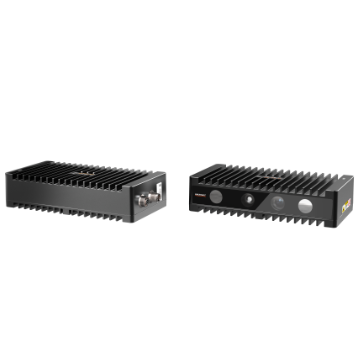

Hikrobot RGB-D Smart 3D Camera (Singulator) MV-DB500S-S

Adopts built-in deep learning algorithm to provide accurate instance segmentation and positioning results.
High-efficient laser module and accurate exposure synchronization provide stable performance and wider dynamic range.
Supports synchronized output of RGB images and depth images for secondary development.
Adopts narrow band filters to have stronger anti-interference ability.
Support one-click system calibration of single camera or multiple cameras.
Ingress Protection (IP) 65.

Diese Kombination existiert nicht.

Artikelnummer: MV-DB500S-S

Gigabit Ethernet 3D Camera RGB-D smart camera MV-DB500S-S RGB-D Smart 3D Camera (Singulator)

Weitere Informationen

Schnittstelle zur Datenübertragung	Gigabit Ethernet
Model Number	MV-DB500S-S
Certification	KC
Digital I/O	12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Power Supply	12 VDC to 24 VDC
Power Consumption	5.5 W
Dimension	200 mm × 47 mm ×
Weight	1 g
Ingress Protection	IP65
Storage Temperature	–30 °C to 80 °C
Humidity	20% RH to 85% RH, non-condensing
Client Software	robotic parcel-feeding system, HiViewer
Operating System	32/64-bit Windows 7/10
